Pump Types for Chemical Systems
Explore our full lineup of chemical pumps engineered for California industrial dosing systems, municipal water treatment, fertigation, and wastewater processing.
All Pump Types – Chemical Dosing & Transfer
Metering Pumps
Precise, repeatable chemical dosing for water disinfection, pH control, and additive injection in industrial and municipal systems.
- Flow Range: 0.01 GPH to 250 GPH
- Pressure: 10–300 PSI
- Types: Diaphragm, Peristaltic, Solenoid, Motor-Driven
- Materials: PVC, PVDF, SS316, Polypropylene, PTFE
- Features: Adjustable stroke, anti-siphon, digital batching
- Applications: Water disinfection, pH balancing, nutrient dosing
Centrifugal Pumps
High-flow, chemical-resistant transfer for wastewater and non-viscous fluids in industrial and agricultural systems.
- Flow Rate: 10–300+ GPM
- Head Height: Up to 250 ft TDH
- Types: Close-Coupled, Mag Drive, End Suction
- Materials: Cast Iron, Stainless, Polypropylene, PVDF
- Features: Solids-safe, chemical resistant, TEFC options
- Applications: Tank transfer, fluid circulation, general pumping
Diaphragm Pumps
Durable pumps built for slurries, chemicals, and polymers in heavy-duty wastewater and industrial dosing systems.
- Flow Rate: Up to 275 GPM
- Pressure: 30–120 PSI
- Types: AODD, Electric
- Materials: Santoprene, Viton, Polypropylene, Stainless
- Features: Self-priming, solids handling, variable flow
- Applications: Paints, polymers, acids, chemical slurries
Peristaltic Pumps
Seal-free tube pumps for gentle, accurate delivery of shear-sensitive, corrosive, or viscous fluids.
- Flow Rate: 0.001 – 50 GPH
- Pressure: 15–125 PSI
- Types: Tube Compression, Digital Speed-Controlled
- Features: Tubing-only contact, no seals/valves, high precision
- Applications: Nutrient dosing, disinfection, viscous media
Chemical Injection Pumps
Accurate micro-dosing pumps for precise chemical delivery in California water systems and industrial control networks.
- Flow Rate: 0.1 – 20 GPH
- Types: Solenoid-Driven, Electric, Fixed/Adjustable Stroke
- Features: Calibration columns, check valves, PLC-compatible
- Applications: Chlorine, coagulants, pH adjustment, fertilizers
Proportional Dosing Pumps
Non-electric, water-powered injection pumps for irrigation, fertigation, and livestock nutrient delivery systems.
- Flow Rate: Up to 40 GPM
- Dosing Ratios: Adjustable 1:500 to 1:10
- Types: Water-Driven, Flow-Proportional
- Features: Built-in bypass, no electricity, self-regulating
- Applications: Agriculture, greenhouses, livestock, soaps
Dosing Skids & Injection Assemblies
Engineered for California water treatment plants, chemical dosing systems, and industrial compliance packages. LibertyCES modular skids simplify installation and boost dosing reliability.
Dosing Skids, Calibration Columns & Injection Valves

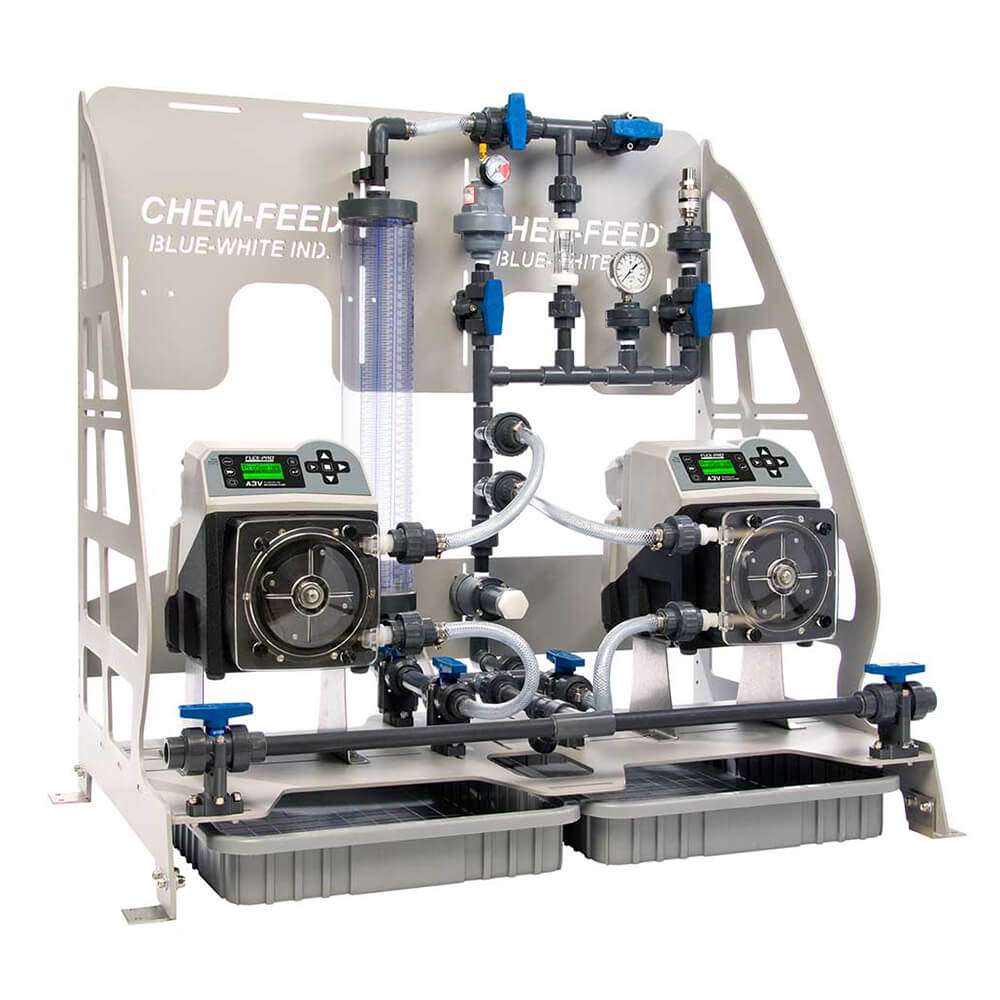

Pre-Assembled Dosing Skids
Fully integrated chemical feed systems combining pumps, valves, tubing, and controls — built for rapid install and precise dosing.
- Frame Materials: HDPE, 304 Stainless Steel, Powder-Coated Steel
- Includes: Metering pump, calibration column, backpressure & injection valves, pressure relief, tubing
- Mount: Wall-mounted or skid-based
- Optional: Single/multi-pump layout, PLC control, NEMA enclosure
- Applications: pH adjustment, chlorine dosing, nutrient feed, boiler treatment
Calibration Columns
Graduated calibration columns for real-time flow verification of metering and diaphragm pumps in regulatory dosing systems.
- Sizes: 100 mL – 2,000 mL
- Materials: Clear PVC, Acrylic, Glass
- Ports: ¼" or ½" NPT threaded
- Features: Precision scale (mL/GPH), threaded caps
- Applications: Flow testing, compliance, batch dosing verification
Chemical Injection Assemblies
Pressure-rated injection valves that prevent backflow and allow accurate chemical delivery into tanks or inline systems.
- Nozzle Types: Standard, Anti-siphon, Spring-loaded check
- Materials: PVC, PVDF, SS316
- Connections: ¼" – 1" FNPT
- Features: One-way flow, no-drip discharge, built-in check valve
- Applications: Fertilizer injection, polymer feed, chlorine systems
Smart Controllers & Remote Pump Telemetry
LibertyCES delivers SCADA-ready control units, telemetry-enabled pump stations, and PLC automation hardware for chemical metering systems, wastewater facilities, and California fluid treatment operations.
Smart Pump Controllers & Remote Monitoring Systems

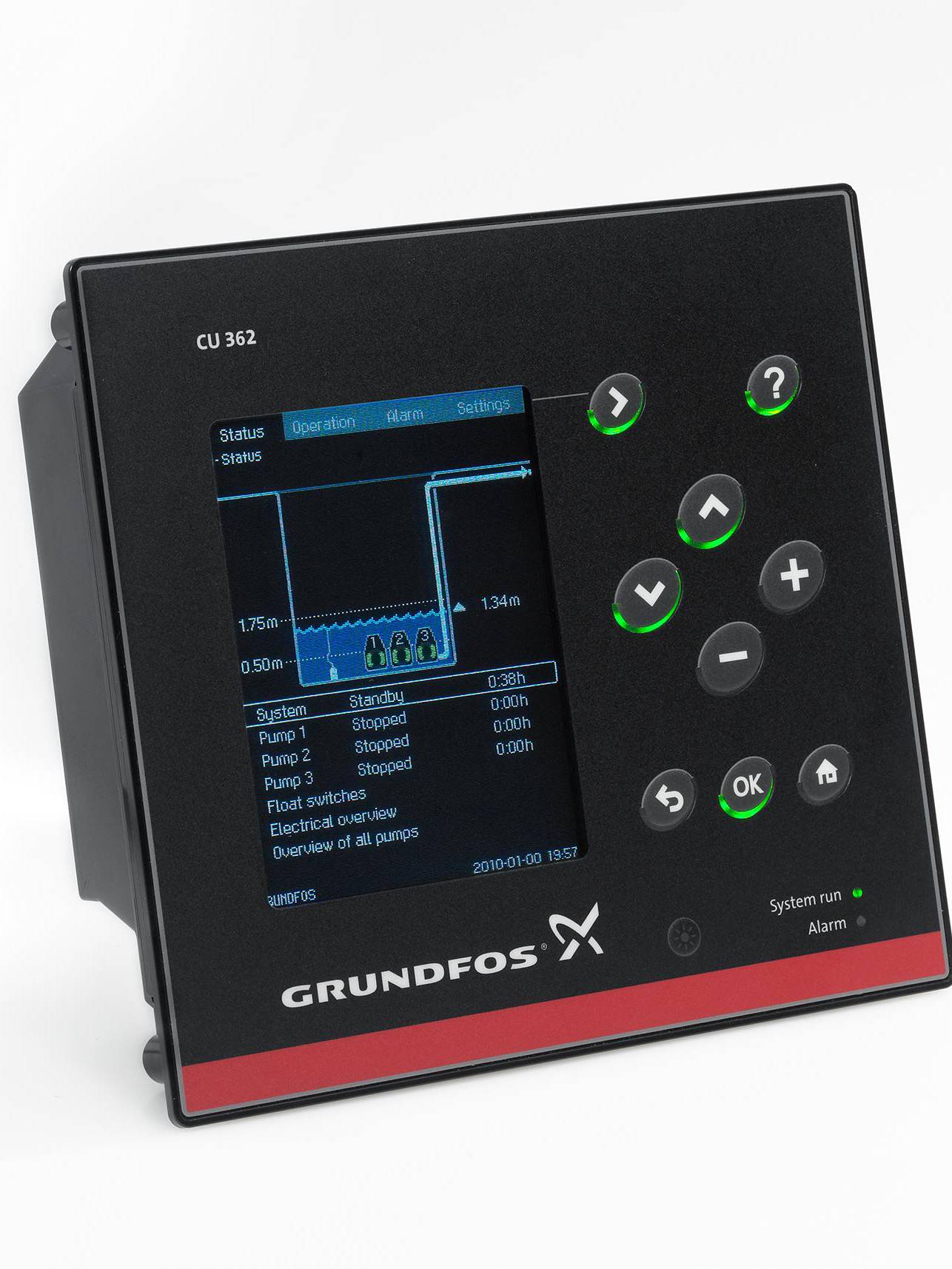

🎛️ Pump Control Panels
- Control Types: Timed dosing units, batch controllers, variable-rate flow regulators
- Interfaces: LCD, keypad, touch screen (IP65/IP67 rated)
- Signals: 4–20mA, pulse output, Modbus RS485, 0–10V analog
- Mounting: Wall-mount or NEMA-rated control enclosures (UL-listed)
- Functions: Alarm output, flow logic, system lockout, programmable relay
📡 Telemetry & IoT Monitoring
- Connectivity: Wi-Fi, LoRaWAN, 4G LTE Cellular, Ethernet
- Alerts: Leak detection, dry-run warnings, chemical flow fault logging
- Integrations: SCADA, BACnet, MQTT, cloud-based control apps
- Use Cases: Water utility dosing skids, agri-irrigation telemetry, remote pump management
Sensors & Logic Panels for Industrial Pumps
LibertyCES delivers inline paddlewheel sensors, digital pressure monitors, and NEMA-rated control panels engineered for chemical feed skids, tank level protection, and fluid automation systems in California.
Instrumentation & Panel Systems for Dosing Pumps
🌀 Flow & Pressure Sensors
- Sensor Types: Paddlewheel, ultrasonic, electromagnetic, transducers
- Range: 0.1 to 300 GPM / 0–300 PSI
- Mounting: Inline, insertion, or panel-mounted
- Materials: PVC, polypropylene, 316 stainless steel
- Applications: Dosing accuracy, fluid safety, system calibration
🌊 Tank Level & Logic Controllers
- Types: Float switches, ultrasonic, pressure-based logic sensors
- Functions: Overflow shutdown, dry-run alarm, refill auto-start
- Outputs: Analog 4–20 mA, digital relay triggers
- Use Cases: Wastewater treatment tanks, pH systems, food-grade batching
🔐 Pump Control Panels
- Panel Types: Single-pump, multi-pump with HOA toggle
- Features: LED status, disconnect fuses, override switches
- Enclosures: NEMA 4X fiberglass, UL-listed polycarbonate
- Industries: Municipal water, agriculture, chemical batching, stormwater lift stations
Pump Accessories & Mounting Panels
LibertyCES provides chemical pump accessories and mounting solutions engineered for SPCC-compliant skids, industrial water systems, and municipal chemical dosing packages.
System Accessories & Mounting Hardware for Chemical Skids
🧱 Pump Mounting Panels & Skids
- Materials: HDPE, Fiberglass, 304 Stainless Steel
- Formats: Wall-mount, floor skid base, modular system racks
- Features: Pre-drilled for pumps, valves, and columns; chemical and UV resistant; corrosion-proof in outdoor or washdown areas; custom cutouts for sensors, flow meters, and controllers
- Applications: Modular pump systems, OEM skid builds, field service installs
🔐 Protective Pump Enclosures
- Materials: UV-Stable Polyethylene, FRP, Polycarbonate
- Enclosure Ratings: NEMA 4X, IP65+
- Features: Lockable access doors; weatherproof and splash-resistant; optional ventilation or insulation panels
- Applications: Chemical storage areas, remote pump skids, municipal treatment sites
🧊 Vibration Isolation Kits
- Components: Rubber isolation pads; shock-absorbing pump mounts; flexible tubing or hose elbows
- Features: Reduces pump vibration and transmitted noise; prevents damage to rigid PVC or poly pipe
- Applications: Metering pumps, centrifugal pump platforms, vibration-sensitive systems
🚿 Drain & Maintenance Ports
- Fittings: Threaded NPT, quick-disconnect couplings
- Materials: PVC, Polypropylene, Stainless Steel 316
- Features: Drain valves for safe chemical purging; ports for diaphragm head flushing or tubing changeouts
- Applications: CIP in food plants, pump servicing, shutdown maintenance
Precision Pumps, Smart Controls & Industrial Fluid Systems for California
From automated chemical dosing skids to NEMA-rated control panels, LibertyCES engineers complete fluid management systems for municipal water treatment, industrial wastewater control, agricultural fertigation, and environmental compliance across California. Our solutions integrate metering pumps, flow sensors, pressure valves, and tank-level logic into turnkey assemblies — built for reliability, scalability, and regulatory precision.
Request System Design & Specs →Industrial Applications for Dosing Pumps & Control Systems
LibertyCES delivers automated chemical injection platforms, NSF-rated pump skids, and SCADA-ready control systems for fluid management across California’s regulated industries — from wastewater to precision agriculture.
🚰 Municipal Water & Wastewater
NSF-certified sodium hypochlorite dosing systems, pH control pumps, and remote SCADA telemetry.
🌿 Agriculture & Irrigation
Flow-proportional fertigation skids, acid injection, and inline nutrient dosing for greenhouses, vineyards & orchards.
🥫 Food & Beverage Processing
Clean-in-place (CIP) ready sanitary metering pumps and automated batching panels for flavor, color & additive dosing.
⚗️ Industrial Wastewater
pH neutralization systems, chemical feed panels, and corrosive liquid handling pumps for compliance-driven discharge treatment.
🏭 Cooling Towers & Boilers
Automated skids for corrosion inhibitor dosing, biocide feed, and conductivity-based blowdown control.
🐄 Livestock & Dairy Systems
Water treatment skids for livestock, chlorine dosing, and automatic mineral balancing for poultry and dairy hydration.
Chemical Dosing Pumps & Automated Controls for Industrial Fluid Management
LibertyCES offers a comprehensive range of precision chemical dosing pumps and automated control systems engineered for municipal water treatment, agricultural irrigation, food and beverage processing, and industrial wastewater management. Our solutions include metering pumps, diaphragm pumps, peristaltic pumps, and smart pump controllers designed for accurate chemical injection and efficient fluid handling across diverse applications.
