Spun vs Pleated Sediment Cartridges for Industrial Process Water
Sediment cartridge type is one of the most consistently under-specified decisions in process water systems. The choice between spun and pleated geometry determines loading capacity, service life, and whether downstream equipment stays protected.
The Specification Decision Most Filter Orders Skip
Most sediment filter specifications define a housing size and a micron rating. Cartridge media type — spun or pleated — rarely appears on the purchase order.
It should. The same 5-micron rating in the same housing performs differently depending on construction. Under equivalent solids load and flow conditions, the two cartridge types load differently, blind at different rates, and deliver different service lives. Specifying cartridge type is not a refinement. It is part of the specification.
How Spun Graded-Density Cartridges Work — and Where They Fail
A spun sediment cartridge is made by winding polypropylene fibers around a core. The winding creates a gradient in fiber density: loose at the outer surface, progressively tighter toward the center. Large particles are captured at the outer layers; finer particles penetrate deeper into the media before being captured.
This graded structure works well when solids loading is low and consistent. The entire depth of the cartridge contributes to filtration, and service life reflects the total available capacity.
Under high solids concentration or high flow velocity, the outer fiber layer captures and retains particles faster than the inner layers can compensate. The outer surface loads and begins restricting flow. Differential pressure builds across that outer zone. The inner capacity of the cartridge — often the majority of the available media — never reaches its loading potential before the element hits terminal differential pressure.
Service life is cut short by surface blinding, not by total media exhaustion.
How Pleated Cartridges Work — and Where They Win

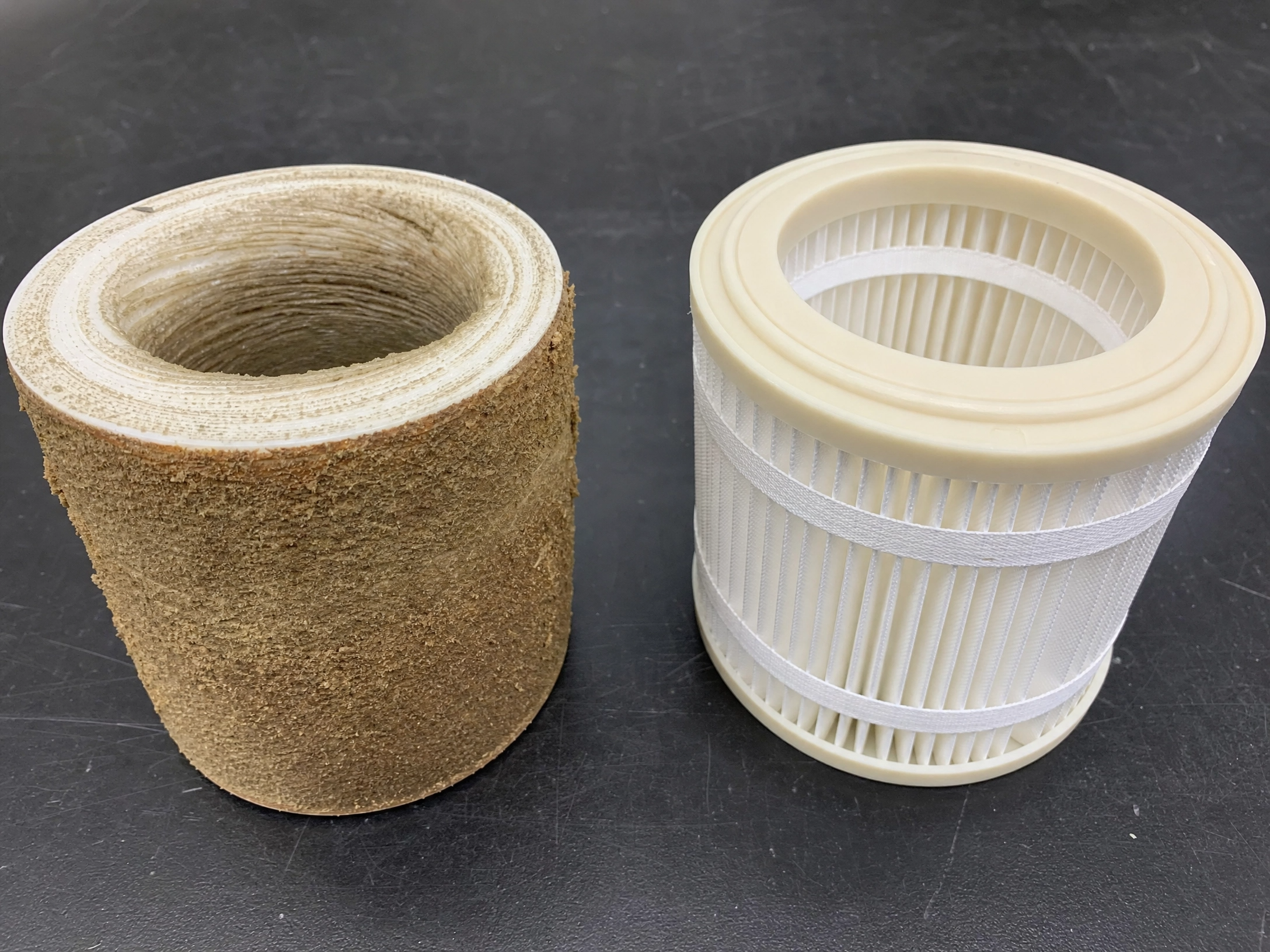

A pleated sediment cartridge uses flat filter media — typically polyester, polypropylene, or glass fiber — folded into tight accordion pleats and wrapped around a core. The pleat geometry increases effective filtration surface area significantly compared to a spun cartridge of the same physical dimensions.
Because available surface area is larger, the solids load per unit of media surface is lower at any given flow rate and solids concentration. The cartridge reaches terminal differential pressure only after the full pleat surface is engaged — not just the outer layer. Under high solids load, that translates directly to longer service life between changeouts.
At high flow rates, the same geometry advantage applies. More surface area means lower approach velocity across the media, which slows the rate of surface blinding and maintains lower clean differential pressure throughout the service interval.
When to Specify Spun — and When to Specify Pleated
Spun graded-density is a reasonable specification when:
- Solids loading is low and process water quality is consistent
- Flow rate per element is at or below the manufacturer's low-flow rated range
- The cartridge sits upstream of non-critical process equipment — not RO, not food contact
- Cartridge unit cost is the primary procurement driver and changeout frequency is acceptable
Pleated is the better specification when:
- Solids concentration is moderate to high, or variable across process runs
- Flow rate per element is at or above the manufacturer's mid-to-high rated range
- The cartridge sits upstream of an RO membrane array, carbon block, or food-contact equipment
- Changeout frequency or maintenance labor is a system operating cost concern
- NSF/ANSI 61 or food-contact material compliance is required — pleated cartridges in polyester or polypropylene are available with NSF listings; verify against the specific product and application
For industrial process water applications with variable solids and flow rates above the low end of the manufacturer's rated range, pleated construction is generally the more reliable specification. Confirm cartridge selection against the manufacturer's datasheet for the specific micron rating, media type, fluid, and operating conditions.
Nominal vs Absolute Micron Rating — What the Number Actually Means
Sediment cartridges are rated in one of two ways: nominal or absolute.
A nominal micron rating indicates the approximate particle size the cartridge is designed to capture under standard test conditions. In practice, some fraction of particles at or near the rated size will pass through. Spun graded-density cartridges are typically sold with nominal ratings.
An absolute micron rating indicates that particles at or above the rated size are retained to a defined efficiency — commonly 99.9% or higher — under specified test conditions. Pleated cartridges are available in both nominal and absolute-rated constructions depending on media type and manufacturer.
For applications where the micron rating is a downstream protection requirement — RO membrane pre-treatment, food and beverage process water, pharmaceutical applications — absolute-rated pleated cartridges at the specified micron are the correct specification. A nominal-rated 5-micron cartridge passing particles larger than 5 microns does not meet the protection intent of a 5-micron pre-filter requirement.
Which Filter Comes First — Sediment or Carbon?
In a multi-stage cartridge system, sediment filtration always precedes carbon block filtration. The sequence is not interchangeable.
Carbon block cartridges provide both mechanical filtration and chemical adsorption — chlorine reduction, taste and odor control. Particulate matter in the feed water will blind the carbon block surface, compressing service life and degrading the chlorine reduction efficiency that the carbon stage is installed to deliver. Removing particulate load with a sediment stage first protects the carbon block and allows it to operate at rated chlorine reduction capacity throughout its service interval.
For systems with reverse osmosis downstream, the standard pre-treatment sequence is sediment → carbon → RO. The sediment cartridge protects the carbon block; the carbon block removes free chlorine that would otherwise oxidize and degrade the RO membrane. Each stage depends on the one before it operating correctly.
Carbon Block Cartridges — NSF Chlorine Removal and RO ProtectionDP Monitoring Applies to Both Cartridge Types
Whether the housing uses spun or pleated cartridges, differential pressure is the correct changeout trigger — not a time-based schedule.
Time-based schedules calibrated to average operating conditions will either change cartridges before capacity is reached, wasting service life, or after terminal DP, risking bypass or downstream contamination. An inlet gauge and an outlet gauge, one on each side of the housing, give a direct reading of actual cartridge loading at current operating conditions. At approximately 15 PSI differential, or the cartridge manufacturer's stated terminal DP for the specific product and application, the changeout should be initiated.
When to Replace Industrial Filter Cartridges — The Differential Pressure RuleFree Cartridge Selection Worksheet
The Industrial Cartridge Filtration Spec Check covers cartridge type selection — spun vs pleated, nominal vs absolute micron, housing sizing, and DP thresholds — in one field-usable format.
Download FreeSpun vs Pleated Cartridge FAQs
Are pleated cartridges always better than spun cartridges?
No. Spun graded-density cartridges can be a reasonable specification when solids loading is low, flow per element is conservative, and unit cost matters more than changeout labor. Pleated cartridges are usually the stronger specification when solids loading is moderate to high, flow is variable, or downstream equipment such as RO membranes or carbon blocks must be protected.
Should sediment filtration come before carbon block filtration?
Yes. In a multi-stage cartridge system, sediment filtration should precede carbon block filtration. The sediment stage removes particulate load before it can blind the carbon block surface and reduce chlorine adsorption service life.
What is the right changeout trigger for spun and pleated cartridges?
Differential pressure is the correct changeout trigger for both spun and pleated cartridges. A time-based schedule is only a proxy. At approximately 15 PSI differential, or the manufacturer's stated terminal DP for the specific cartridge and application, changeout should be initiated.
When does absolute micron rating matter?
Absolute micron rating matters when the cartridge is protecting downstream equipment or process quality, such as RO membrane pre-treatment, food and beverage process water, or pharmaceutical applications. Nominal-rated cartridges may allow some particles at or near the stated micron size to pass.
