Graco Industrial Pumps
Husky AODD, QUANTM electric diaphragm, SoloTech peristaltic, and ChemSafe sanitary pump families — real specs, real chemical compatibility, as stocked and specified by LibertyCES.
Graco makes four pump families LibertyCES specifies: Husky air-operated diaphragm pumps for general chemical transfer, QUANTM electric diaphragm pumps (including the 3-inch i230) that replace AODD without compressed air, SoloTech peristaltic hose pumps, and ChemSafe sanitary AODD pumps for sodium hypochlorite. Confirm model, materials, and voltage before quotation.
What LibertyCES specifies from Graco

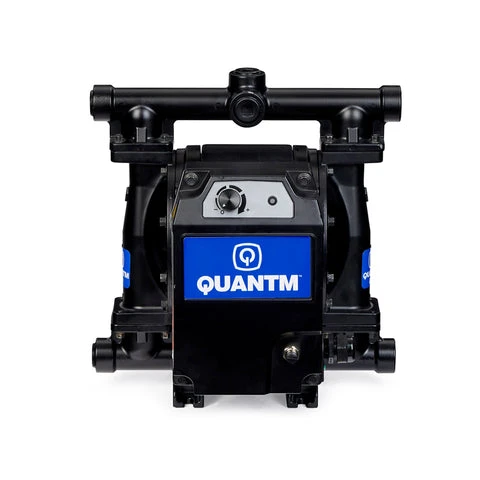

QUANTM i230: Graco's 3-inch electric diaphragm pump
The i230 is the largest QUANTM pump: 230 gpm free flow, 100 psi, 1.25 gal per cycle through 3-inch ANSI flanges, with 3/8-inch solids handling and 28 ft wet suction lift. It runs on 380–480 V three-phase (16 A, 20 A breaker), takes a 4–20 mA or 0–10 V speed signal with no external VFD, and still stalls under pressure and runs dry like an air pump.
Know the limits: aluminum fluid section only, non-hazardous locations only (UL 1004-1 / CSA C22.2 No. 100), 388 lb. Check the fluid against aluminum and every elastomer before you order.
i230 photos and clips are illustrative renders, not a specific customer site.
Primary Fit, Not a Rigid Yes-or-No Matrix
All four families can overlap on some transfer duties. This table identifies which family to investigate first — it doesn't approve a final model, chemical compatibility, solids passage, voltage, or operating point.
| Application | Husky AODD | QUANTM EODD | SoloTech Peristaltic | ChemSafe Sanitary |
|---|---|---|---|---|
| Precision reagent dosing | Conditional | Conditional — flow/pressure/control accuracy dependent | Primary fit | Conditional |
| Abrasive slurry transfer | Conditional — abrasion resistant housings available | Model-dependent (i30/i80/i120/i120LP solids limits) | Primary fit | Not typical |
| General AODD replacement (compressed-air cost/noise) | n/a — this is the AODD baseline | Primary fit | Not typical | n/a |
| General chemical transfer / drum unloading | Primary fit | Conditional | Conditional | Conditional |
| Sanitary strong-oxidizer service (NaOCl, H2O2) | Conditional — material dependent | Conditional — material dependent | Not typical | Primary fit |
| Remote / solar-supported service | Not manufacturer-promoted | Documented capability (12/24 VDC via inverter) | Not manufacturer-promoted | Not manufacturer-promoted |
Always confirm the exact pump model, fluid-section materials, hose or diaphragm materials, connection size, pressure limit, solids allowance, voltage, hazardous-location requirements, and control method before quotation.
How to Choose the Right Graco Family
Start with the process duty rather than the brand name or maximum flow number.
Define the actual service
Chemical, concentration, temperature, required flow and pressure, specific gravity, viscosity, solids size and concentration, suction conditions, and duty cycle.
Identify the dominant failure mode
Air cost/noise/compressor limits point to QUANTM. Seal or check-valve wear in abrasive/caustic service points to SoloTech. General transfer/drum unloading points to Husky. Sanitary strong-oxidizer service points to ChemSafe.
Verify the exact configuration
Match the selected family to the real hydraulic point and complete wetted path — fluid-section material, diaphragm, checks, voltage, hazardous-location rating, and controls, confirmed against current manufacturer data.
Send LibertyCES the real service conditions: chemical and concentration, temperature, flow, discharge pressure or head, suction conditions, viscosity, solids, duty cycle, available power, hazardous classification, desired controls, and current pump failure history.
Mining Pump Pages Connected to This Pillar
Compare peristaltic, electric diaphragm, and magnetic-drive pump technologies.
Electric vs. pneumatic diaphragm power trains, controls, and operating cost.
Full specs, materials, motor options, and certification boundaries.
Reagent dosing, abrasive slurry, and mechanism breakdown for SoloTech in mining service.
Organize chemistry, solids, hydraulics, duty cycle, and control requirements.
Graco — Real Catalog Spec Data
| Product Line | Model | Category | Material | Size / Capacity | Temp Rating |
|---|---|---|---|---|---|
| QUANTM | i30 | Pump | fluid section: Aluminum/PP/PVDF/316SS; diaphragm: Buna-N/FKM(Viton)/G.E.T./PTFE Overmold/PTFE-Santoprene/Santoprene/TPE(Hytrel) | 1in port, 30 GPM (114 lpm), max 100 psi | n/a - stalls under pressure; up to 80% lower energy cost vs air-operated |
| QUANTM | i80 | Pump | fluid section: Aluminum(NPT/BSPT)/PP/PVDF/316SS(NPT/BSPT); diaphragm: Buna-N/FKM(Viton)/G.E.T./PTFE Overmold/PTFE-Santoprene/Santoprene/TPE(Hytrel) | 1.5in port, 80 GPM (300 lpm); 194 SKU combinations; hazloc options: Class 1 Div 1/ATEX/IECEx/None | 200-240VAC or 380-480VAC 3Ph |
| QUANTM | i120 | Pump | fluid section/diaphragm options same family as i80 (unconfirmed per-model) | 2in port, 120 GPM (450 lpm) | 240V or 380/480V |
| QUANTM | i230 | Pump | fluid section: Aluminum only; seats/balls/diaphragms: Santoprene, Geolast, Buna-N, neoprene, FKM, PTFE options | 3in ANSI flange, 230 GPM free flow, max 100 psi, 3/8in solids, 380-480VAC 3Ph 16 A; non-hazardous only | aluminum -60 to 275°F; elastomers limit (e.g. Santoprene -40 to 180°F) |
| SoloTech | i10 (low speed) | Pump | peristaltic hose - Hypalon/CSM/EPDM/natural rubber options; PVDF/Hastelloy-C/316SS barb options | single-roller design | rated for abrasive/alkaline slurry service |
| SoloTech | 23 (mid speed) | Pump | peristaltic hose - same options as i10 | 1in hose/inlet, 0.054 gal/cycle, 22.8x19.8x17.2in | same as i10 |
| SoloTech | 26 (high speed) | Pump | peristaltic hose - same options as i10 | n/a | same as i10 |
| Husky | 716 | Pump | fluid section: Aluminum/316SS; seat: SS/Acetal/PP/Urethane Duckbill; ball: PTFE/Santoprene/Buna-N/TPE(Hytrel)/316SS/Urethane Duckbill; diaphragm: Fluoroelastomer/Buna-N/Santoprene/PTFE Overmold/PTFE-EPDM/TPE(Hytrel) | 3/4in (19.05mm) port; center/end porting; 52 SKU combinations | n/a |
| Husky | 1050 | Pump | aluminum/SS/PP/PVDF options | n/a | n/a |
| Husky | 2150 | Pump | aluminum/SS/PP/PVDF options | up to 40% more efficient than standard AODD | n/a |
| Mongoose | A21008 (PVDF) | Pump | PVDF wetted end | 17 GPD 250 PSI 120VAC | n/a |
| Mongoose | A21000 (stainless steel) | Pump | stainless steel wetted end | 17 GPD 250 PSI 120VAC | n/a |
| G-JR Chemical Injection | AC/DC electric | Pump | n/a | paired with Harrier EZ-JR controller | n/a |
| Python Chemical Injection | gas/air operated | Pump | n/a | for hazardous locations; runs on regulated natural gas or compressed air | n/a |
| ChemSafe | 1590 (24X421) | Pump | PTFE or UHMWPE fluid path; no exposed metal | NPT port | n/a |
Sourced from Graco's own catalog documentation.
Frequently Asked Questions
What Graco pump families does LibertyCES specify?
Four families (QUANTM now includes the 3-inch i230): Husky AODD (general chemical transfer, drum unloading), QUANTM electric diaphragm (AODD replacement, dewatering, remote/automated service), SoloTech peristaltic (precision dosing, abrasive/crystallizing chemistry), and ChemSafe sanitary AODD (strong oxidizer service with zero exposed metal).
What is the difference between SoloTech and QUANTM for mining service?
SoloTech is a peristaltic hose pump whose primary fit is precision reagent dosing and abrasive slurry transfer — the fluid stays inside the hose, isolated from the casing and any dynamic seal. QUANTM is an electric double diaphragm pump whose primary fit is AODD replacement, general dewatering, transfer, and remote-control service without compressed air.
Can QUANTM replace an air-operated double diaphragm pump?
QUANTM is designed as an electric alternative to pneumatic diaphragm pumps and doesn't require compressed air. Graco states energy usage and cost reductions of up to 80% vs. pneumatic pumps in qualifying installations — see the full EODD vs. AODD comparison for what that claim actually depends on.
Does Graco make a 3-inch electric diaphragm pump?
Yes. The QUANTM i230, introduced in 2026, is a 3-inch flanged electric double diaphragm pump rated 230 gpm free flow and 100 psi. It has an aluminum fluid section, runs on 380–480 V three-phase power and is approved for non-hazardous locations only.
What chemicals are Graco pumps rated for at LibertyCES?
Depends on family and housing material — sulfuric and phosphoric acid, sodium hydroxide, sodium hypochlorite, and hydrogen peroxide are all documented across the Husky, QUANTM, and ChemSafe lines with specific material call-outs, not a generic "chemical duty" claim.
Which Graco pump fits your chemistry and duty?
Ready to buy or need a fast answer? Call, text, or email James directly — (559) 395-5500 · [email protected].
Not ready to talk? Download the catalog →
Graco models in the LibertyCES catalog
108 models across 60 product lines. For most models that state them (the middle 80%): flow 0.012–150 gpm (2.7–34,100 L/h); connection sizes 0.75–20 in. Extremes are in the table.
| Model / line | Type | Size / capacity / flow | Pressure | Temperature | Wetted material | Source |
|---|---|---|---|---|---|---|
| QUANTM i30 | Pump | 30 gpm | 100 psi (6.9 bar) | n/a - stalls under pressure; up to 80% lower energy cost vs air-operated | fluid section: Aluminum/PP/PVDF/316SS; diaphragm: Buna-N/FKM(Viton)/G.E.T./PTFE Overmold/PTFE-Santoprene/Santoprene/TPE(Hytrel) | Graco — Diaphragm Pumps |
| QUANTM i80 | Pump | 80 gpm | 200-240VAC or 380-480VAC 3Ph | fluid section: Aluminum(NPT/BSPT)/PP/PVDF/316SS(NPT/BSPT); diaphragm: Buna-N/FKM(Viton)/G.E.T./PTFE Overmold/PTFE-Santoprene/Santoprene/TPE(Hytrel) | Graco — Diaphragm Pumps | |
| QUANTM i120 | Pump | 120 gpm | 240V or 380/480V | Graco — Diaphragm Pumps | ||
| SoloTech i10 (low speed) | Pump | single-roller design | rated for abrasive/alkaline slurry service | peristaltic hose - Hypalon/CSM/EPDM/natural rubber options; PVDF/Hastelloy-C/316SS barb options | Graco — QUANTM & SoloTech | |
| SoloTech 23 (mid speed) | Pump | 1in hose/inlet, 0.054 gal/cycle, 22.8x19.8x17.2in | same as i10 | peristaltic hose - same options as i10 | Graco — QUANTM & SoloTech | |
| SoloTech 26 (high speed) | Pump | n/a | same as i10 | peristaltic hose - same options as i10 | Graco — QUANTM & SoloTech | |
| Husky 716 | Pump | 3/4in (19.05mm) port; center/end porting; 52 SKU combinations | fluid section: Aluminum/316SS; seat: SS/Acetal/PP/Urethane Duckbill; ball: PTFE/Santoprene/Buna-N/TPE(Hytrel)/316SS/Urethane Duckbill; diaphragm: Fluoroelastomer/Buna-N/Santoprene/PTFE Overmold/PTFE-EPDM/TPE(Hytrel) | Graco — Diaphragm Pumps | ||
| Husky 1050 | Pump | n/a | aluminum/SS/PP/PVDF options | Graco — QUANTM & SoloTech | ||
| Husky 2150 | Pump | up to 40% more efficient than standard AODD | aluminum/SS/PP/PVDF options | Graco — QUANTM & SoloTech | ||
| Mongoose A21008 (PVDF) | Pump | 0 gpm | 250 psi (17.2 bar) | PVDF wetted end | Graco — QUANTM & SoloTech | |
| Mongoose A21000 (stainless steel) | Pump | 0 gpm | 250 psi (17.2 bar) | stainless steel wetted end | Graco — QUANTM & SoloTech | |
| G-JR Chemical Injection AC/DC electric | Pump | paired with Harrier EZ-JR controller | n/a | Graco — QUANTM & SoloTech | ||
| Python Chemical Injection gas/air operated | Pump | for hazardous locations; runs on regulated natural gas or compressed air | n/a | Graco — QUANTM & SoloTech | ||
| Wolverine Chemical Injection SUPERSEDED - see Wolverine Drive/Fluid Module rows below | Pump | n/a | Graco — QUANTM & SoloTech | |||
| ChemSafe 1590 (24X421) | Pump | NPT port | PTFE or UHMWPE fluid path; no exposed metal | Graco — Diaphragm Pumps | ||
| ChemSafe 515 (24X425) | Pump | NPT port | PTFE seat/ball/overmolded diaphragm/fluid path | Graco — Diaphragm Pumps | ||
| ChemSafe 307 (24X427) | Pump | NPT port | PTFE seat/ball/overmolded diaphragm/fluid path | Graco — Diaphragm Pumps | ||
| ChemSafe 1040 (24X423) | Pump | NPT port | PTFE seat/ball/overmolded diaphragm/fluid path | Graco — Diaphragm Pumps | ||
| Harrier EZ-B control box (B52284) | Controller | batch treatment | n/a | Graco — Chemical Injection | ||
| Harrier EZ-B controller (B32707) | Controller | 16A, 26VDC, DC solar power | -40–131 °F (-40–55 °C) | n/a | Graco — Chemical Injection | |
| Harrier AC Controller remote mount (B32691) | Controller | 5A, cycle mode, adaptive flow control | n/a | Graco — Chemical Injection | ||
| Harrier EZ time-based w/ LVD (B32110) | Controller | 16A, time mode, methanol temp probe | -40–131 °F (-40–55 °C) | n/a | Graco — Chemical Injection | |
| Harrier EZ-JR temp-based dosing (B32001) | Controller | 16A, cycle mode; standard on G-JR pump | -40–131 °F (-40–55 °C) | n/a | Graco — Chemical Injection | |
| Harrier+ AC cellular global (B32630) | Controller | 5A, flow control & automation | n/a | Graco — Chemical Injection | ||
| Harrier+ DC cellular global (B32629) | Controller | 25A, flow control & automation | n/a | Graco — Chemical Injection | ||
| Modular Control Box B52M08 | Controller | 115VAC in / 24VDC out, Harrier+ MPI, SCADA comm | n/a | Graco — Chemical Injection | ||
| Modular Control Box B52M04 | Controller | 115VAC in / 115VAC out, Harrier+ MPI, SCADA comm | n/a | Graco — Chemical Injection | ||
| Modular Control Box B52M03 | Controller | 24VDC in/out, Harrier+ MPI, CDMA comm | n/a | Graco — Chemical Injection | ||
| Modular Control Box B52M02 | Controller | 24VDC in/out, Harrier+ MPI, International comm | n/a | Graco — Chemical Injection | ||
| Modular Control Box B52M00 | Controller | 24VDC in/out, Harrier+ MPI, SCADA comm | n/a | Graco — Chemical Injection | ||
| Modular Control Box B52A00 | Controller | AC Control Box, Harrier+ SCADA, 115AC, NEMA rated | n/a | Graco — Chemical Injection | ||
| Modular Control Box B52207 | Controller | Two-Battery box, no controller, SS20L-12V 1-panel charge | n/a | Graco — Chemical Injection | ||
| Modular Control Box B52204 | Controller | Two-Battery box, Harrier+ GSM USA, ASC 12/12 1-panel charge | n/a | Graco — Chemical Injection | ||
| Modular Control Box B52250 | Controller | Two-Battery box, Harrier EZ, SS20L-12V 2-panel charge | n/a | Graco — Chemical Injection | ||
| Modular Control Box B52211 | Controller | Two-Battery box, Harrier+ GSM USA, SS20L-12V 1-panel charge | n/a | Graco — Chemical Injection | ||
| Modular Control Box B52210 | Controller | Two-Battery box, Harrier+ SCADA, SS20L-12V 1-panel charge | n/a | Graco — Chemical Injection | ||
| Modular Control Box B52208 | Controller | Two-Battery box, Harrier EZ, SS20L-12V 1-panel charge | n/a | Graco — Chemical Injection | ||
| Modular Control Box B52201 | Controller | Two-Battery box, Harrier EZ, ASC 12/12 1-panel charge | n/a | Graco — Chemical Injection | ||
| Modular Control Box B52215 | Controller | Two-Battery box, Harrier EZ, Prostar 30 1-panel charge | n/a | Graco — Chemical Injection | ||
| Modular Control Box B52253 | Controller | Two-Battery box, Harrier+ GSM USA, SS20L-12V 2-panel charge | n/a | Graco — Chemical Injection | ||
| Wolverine Drive Module build-to-order (no fixed SKU) | Pump Component | C1D1/C1D2 hazloc rated; duplex-ready; pairs with Fluid Modules | n/a | Graco — Chemical Injection | ||
| Wolverine Fluid Module 26 configurator options | Pump Component | quick-disconnect service, <10 min packing replacement | plunger: stainless steel/ceramic; seal: FFKM/FKM-ETP/HNBR | Graco — Chemical Injection | ||
| G-JR 2 options (DC solar/AC electric) | Pump | entry-level; standard Harrier EZ-JR controller | wetted: Prime Valve, galvanized steel | Graco — Chemical Injection | ||
| Python 39 configurator options | Pump | CE and ATEX approved; hazardous locations | extreme-duty plungers/seals/timing valves | Graco — Chemical Injection | ||
| Harrier+ MPI multipoint controller | Controller | up to 8 injection points, 1 controller | n/a | Graco — Chemical Injection | ||
| KRAKN MPI solenoid fluid manifold | Manifold | replaces up to 8 pumps w/ 1 pump; hazloc + general purpose solenoids | n/a | Graco — Chemical Injection | ||
| SoloTech 10 19X001-19X045 / 19Z001-19Z018 (part of 98 total SKUs) | Peristaltic Pump | certification: ATEX/FDA/No Certification (per SoloTech Pump Selector tool) | hose: Nitrile/EPDM/Rubber/CSM; barb: Stainless Steel/Hastelloy/PVDF | Graco — Peristaltic Pumps | ||
| SoloTech 23 19X052-19X096 (part of 98 total SKUs) | Peristaltic Pump | certification: ATEX/FDA/No Certification (per SoloTech Pump Selector tool) | hose: Nitrile/EPDM/Rubber/CSM; barb: Stainless Steel/Hastelloy/PVDF | Graco — Peristaltic Pumps | ||
| SoloTech 26 19X113-19X144 (part of 98 total SKUs) | Peristaltic Pump | certification: ATEX/FDA/No Certification (per SoloTech Pump Selector tool) | hose: Nitrile/EPDM/Rubber/CSM; barb: Stainless Steel/Hastelloy/PVDF | Graco — Peristaltic Pumps | ||
| SoloTech 30 19X161-19X176 (part of 98 total SKUs) | Peristaltic Pump | certification: ATEX/FDA/No Certification (per SoloTech Pump Selector tool) | hose: Nitrile/EPDM/Rubber/CSM; barb: Stainless Steel/Hastelloy/PVDF | Graco — Peristaltic Pumps | ||
| GSD Automated Adhesive Dispense 2001646 (GSD500x500 Inline) | Dispensing System | 500mm x 500mm envelope | n/a | Graco — Sealants & Adhesives | ||
| GSD Automated Adhesive Dispense 2004679 (GSD600x500 Offline) | Dispensing System | 600mm x 500mm envelope | n/a | Graco — Sealants & Adhesives | ||
| GSD Automated Adhesive Dispense 2001644 (GSD300x300 Offline) | Dispensing System | 300mm x 300mm envelope | n/a | Graco — Sealants & Adhesives | ||
| GSD Automated Adhesive Dispense 2001647 (GSD500x500 Offline) | Dispensing System | 500mm x 500mm envelope | n/a | Graco — Sealants & Adhesives | ||
| DispensIt 1052 | Metering Valve | pneumatic, micrometer adjustable, dot/metered dispense | n/a | Graco — Sealants & Adhesives | ||
| DispensIt 1053 | Metering Valve | servo, programmable, dot/continuous bead/metered dispense | n/a | Graco — Sealants & Adhesives | ||
| DispensIt 1092 | Metering Valve | pneumatic, micrometer stroke adjust, viscosity-insensitive | n/a | Graco — Sealants & Adhesives | ||
| DispensIt 1093 | Metering Valve | servo, micrometer stroke adjust, continuous bead capable | n/a | Graco — Sealants & Adhesives | ||
| DispensIt 1206 | Metering Valve | mechanical, calibrated stroke, positive shutoff | n/a | Graco — Sealants & Adhesives | ||
| Electric Fixed Ratio (EFR) modular (Z-Pump+APD20 driver) | Meter Mix Dispense System | n/a | Elite construction option: 50000+ gal before wear, 10x life vs standard | Graco — Sealants & Adhesives | ||
| Electric Variable Ratio (EVR) modular (Z-Pump+APD20 driver) | Meter Mix Dispense System | ratio 1:1-5:1 or 2:1-10:1; up to 6400 cc/min | n/a | Graco — Sealants & Adhesives | ||
| ExactaBlend AGP glazing proportioner | Meter Mix Dispense System | curtainwall/insulating glass sealing; silicones/urethanes/polysulfides | n/a | Graco — Sealants & Adhesives | ||
| Hydraulic Fixed Ratio (HFR) 24M504 (NVH Foam System) | Meter Mix Dispense System | 160/160 | carbon steel | Graco — Sealants & Adhesives | ||
| Hydraulic Fixed Ratio (HFR) HFRSA1 | Meter Mix Dispense System | 1:1 ratio | carbon steel | Graco — Sealants & Adhesives | ||
| PR-X (Posi-Ratio) 4 configurator options | Meter Mix Dispense System | fixed ratio, FIFO fluid path, EV/electronics/solar/telecom | n/a | Graco — Sealants & Adhesives | ||
| PR-Xv (Posi-Ratio) 6 configurator options | Meter Mix Dispense System | variable ratio, FIFO fluid path, EV/electronics/solar/telecom | n/a | Graco — Sealants & Adhesives | ||
| PR70e benchtop fixed ratio | Meter Mix Dispense System | 1:1-12:1, entry-level, includes LCM | n/a | Graco — Sealants & Adhesives | ||
| PR70 benchtop fixed ratio | Meter Mix Dispense System | 1:1-12:1, +/-1% accuracy | n/a | Graco — Sealants & Adhesives | ||
| PR70v benchtop variable ratio | Meter Mix Dispense System | 1:1-24:1, up to 70cc shots | n/a | Graco — Sealants & Adhesives | ||
| PRO70f benchtop bead/flow control | Meter Mix Dispense System | 1:1-12:1 fixed / 1:1-24:1 variable, up to 15 PLC flow selections | n/a | Graco — Sealants & Adhesives | ||
| PR70s benchtop servo control | Meter Mix Dispense System | 1:1-12:1 fixed / 1:1-24:1 variable, unlimited PLC flow selections | n/a | Graco — Sealants & Adhesives | ||
| PD44 | Meter Mix Dispense System | 0.005-5.0cc shot, 1:1-25:1 ratio, pneumatic or servo drive (from comparison table only) | n/a | Graco — Sealants & Adhesives | ||
| E-Flo iQ 26B546-26B560 (part of 30 total SKUs) | Metering Dispense System | Check-Mate 200cc pump, heated 55gal drum, single/tandem, 10-20ft hoses | n/a | Graco — Sealants & Adhesives | ||
| Precision Continuous Flow (PCF) PF2120-PF2540 (12 complete SKUs) | Metering Dispense System | 100-240VAC; regulator: Cartridge/Mastic/Heated Mastic; meter: none/std/high-res; interface: Discrete/EtherNet-IP/PROFINET | n/a | Graco — Sealants & Adhesives | ||
| Precision Shot Meter (PSM) 2010343-2010382 (part of 37 total SKUs) | Metering Dispense System | shot size: 25/50/100/200cc; gateway: EtherNet-IP/PROFINET; optional Warm Melt | fluid path: SST or Ceramic | Graco — Sealants & Adhesives | ||
| Fluid Pressure Regulator 243700 | Accessory | 230V heated | n/a | Graco — Sealants & Adhesives | ||
| Pump Runaway Valve 224040 | Accessory | 3/4in NPT | n/a | Graco — Sealants & Adhesives | ||
| Fluid Pressure Regulator 244734/246687/248090/961635/244740/246642/903958 | Accessory | air or spring operated, mastic/standard, up to 5000psi | 5,000 psi (344.7 bar) | n/a | Graco — Sealants & Adhesives | |
| Palm Grip Extrusion Gun 204355 | Accessory | n/a | n/a | Graco — Sealants & Adhesives | ||
| PC-8(e) Pattern Controller 24X523-25M526 (7 SKUs) | Controller | InvisiPac hot melt, time/distance mode, optional encoder+run-up control | n/a | Graco — Sealants & Adhesives | ||
| InvisiPac Fluid Hose 126389-24U776 (part of 63 total SKUs) | Hose | No.6 (0.308in ID), Heated or Water-Wash, 4-25ft+ lengths | n/a | Graco — Sealants & Adhesives | ||
| E-Flo SP configurator (no fixed SKU) | Electric Supply Pump | eliminates compressed air, real-time flow control, PLC integration | n/a | Graco — Sealants & Adhesives | ||
| Check-Mate RCMNN79-RCM7C5A (part of 112 total SKUs) | Supply Pump System | lower sizes: 60/100/200/250/500cc; ratio x container-size matrix (S20 20L, D200/D200s 200L) | Carbon Steel or Stainless Steel (SST for waterborne) | Graco — Sealants & Adhesives | ||
| Dura-Flo RGDG959-25A700 (part of 48 total SKUs) | Supply Pump System | 2-ball piston, ratio x drum-size matrix (D200/D200s/D60/D20/S20) | n/a | Graco — Sealants & Adhesives | ||
| DynaMite 2007873 (DM-22) | Mini-Extruder Pump | 1 gallon pails | n/a | Graco — Sealants & Adhesives | ||
| DynaMite 25T472 | Mini-Extruder Pump | 600cc cartridges | n/a | Graco — Sealants & Adhesives | ||
| DynaMite 235871 (DynaMite 190) | Mini-Extruder Pump | 1 quart to 1 gallon pails | n/a | Graco — Sealants & Adhesives | ||
| Electric UniDrum 49 configurator options | Drum Unloader | 264 gal (999 L) | n/a | Graco — Sealants & Adhesives | ||
| Pneumatic UniDrum 14 configurator options | Drum Unloader | 264 gal (999 L) | n/a | Graco — Sealants & Adhesives | ||
| InvisiPac HM10 8 configurator options | Hot Melt Dispense System | 10 lb/hr melt rate, 2 or 4 channels | n/a | Graco — Sealants & Adhesives | ||
| InvisiPac HM25c 8 configurator options | Hot Melt Dispense System | 25 lb/hr melt rate, 4-8 channels | n/a | Graco — Sealants & Adhesives | ||
| InvisiPac HM50 10 configurator options | Hot Melt Dispense System | 50 lb/hr melt rate, 2-6 channels | n/a | Graco — Sealants & Adhesives | ||
| Therm-O-Flow Bulk Hot Melt configurator (no fixed SKU) | Hot Melt Supply System | composite manufacturing resin temp control | n/a | Graco — Sealants & Adhesives | ||
| Therm-O-Flow Bulk Warm Melt (TOFw) WMC73C2-WMC81D1 (part of 16 total SKUs) | Warm Melt Supply System | 5/16/55gal containers; ratio 36:1 or 68:1; up to 32 heat zones; 240V or 480V | platen: Carbon Steel/Aluminum; seal: PTFE Nitrile/EPDM | Graco — Sealants & Adhesives | ||
| SaniForce 515 | Diaphragm Pump | 15 gpm | - | Allied Fluid Products — Bay Area Fluid Handling & Sealing Distributor | ||
| SaniForce 1040 | Diaphragm Pump | 40 gpm | - | Allied Fluid Products — Bay Area Fluid Handling & Sealing Distributor | ||
| SaniForce 1590 | Diaphragm Pump | 90 gpm | - | Allied Fluid Products — Bay Area Fluid Handling & Sealing Distributor | ||
| SaniForce 1590 3A HS | Diaphragm Pump | 90 gpm | - | Allied Fluid Products — Bay Area Fluid Handling & Sealing Distributor | ||
| SaniForce 1590 HS | Diaphragm Pump | 90 gpm | 32 Ra finish | Allied Fluid Products — Bay Area Fluid Handling & Sealing Distributor | ||
| SaniForce 2150 | Diaphragm Pump | 150 gpm | - | Allied Fluid Products — Bay Area Fluid Handling & Sealing Distributor | ||
| SaniForce 2150 Sanitary Drum Unloader | Diaphragm Pump | 2.5" tri-clamp | stainless steel; 125 Ra finish | Allied Fluid Products — Bay Area Fluid Handling & Sealing Distributor | ||
| SaniForce 3150 3A | Diaphragm Pump | 150 gpm | - | Allied Fluid Products — Bay Area Fluid Handling & Sealing Distributor | ||
| SaniForce 3150 HS | Diaphragm Pump | 150 gpm | - | Allied Fluid Products — Bay Area Fluid Handling & Sealing Distributor | ||
| SaniForce 3150 HS Drum Unloader | Diaphragm Pump | 100 gpm | 32 Ra finish | Allied Fluid Products — Bay Area Fluid Handling & Sealing Distributor | ||
| SaniForce 3150 BES | Diaphragm Pump System | 100 gpm | - | Allied Fluid Products — Bay Area Fluid Handling & Sealing Distributor | ||
| SaniForce Meat & Poultry Flapper Pump | Diaphragm Pump | handles solids up to 2.5" | - | Allied Fluid Products — Bay Area Fluid Handling & Sealing Distributor | ||
| Triton 1:1 150 Series | Diaphragm Pump | - | - | Allied Fluid Products — Bay Area Fluid Handling & Sealing Distributor | ||
| Triton 3:1 350 Series | Circulating Pump | - | - | Allied Fluid Products — Bay Area Fluid Handling & Sealing Distributor |
This table is part of the equipment catalog dataset (CSV and JSON).
Looking for a part number? Search Graco parts lists by manual.
Send James your spec
Fluid, concentration, temperature, flow or volume, and where it goes. James replies with a real answer, not a catalog page.
Reviewed by James Riggins, 30+ years specifying water and chemical process equipment · Updated
