Houston PolyTank
DVS 2205 extrusion-wound HDLPE and polypropylene tanks. German engineering, American manufacturing, monolithic integrity — engineered for zero specification failure.
Houston PolyTank builds DVS 2205 extrusion-wound tanks in HDLPE and polypropylene, with a monolithic wall and a ductile, detectable failure mode rather than a layered laminate. Its patented rectangular tank fits standard 40-foot high-cube shipping containers. MagnaPlast manholes are its own product line. HDPE is rated to 120F and PP to 180F chemical service.
What LibertyCES specifies from Houston PolyTank
Monolithic HDLPE and polypropylene construction with a ductile, detectable failure mode — not the layered laminate of FRP or the stressed-skin of roto-molded tanks.
Fits standard 40' high-cube shipping containers, cutting freight cost >80% and increasing storage capacity 20–30% vs. cylindrical tanks in the same footprint.
Houston PolyTank — Real Catalog Spec Data
| Product Line | Model | Category | Material | Size / Capacity | Temp Rating |
|---|---|---|---|---|---|
| Vertical Cylindrical Tank | custom | Storage Tank | PP or HDPE | 50 to 30000 gal; dia 2.0/2.5/4.0/5.5/7/8/9/11/13 ft; wall 0.5-2.5in | HDPE up to 120F; PP up to 180F chemical / 200F water-air |
| Horizontal Cylindrical Tank | custom | Storage Tank | PP or HDPE | same range as vertical; engineered supports required | same as HDPE/PP above |

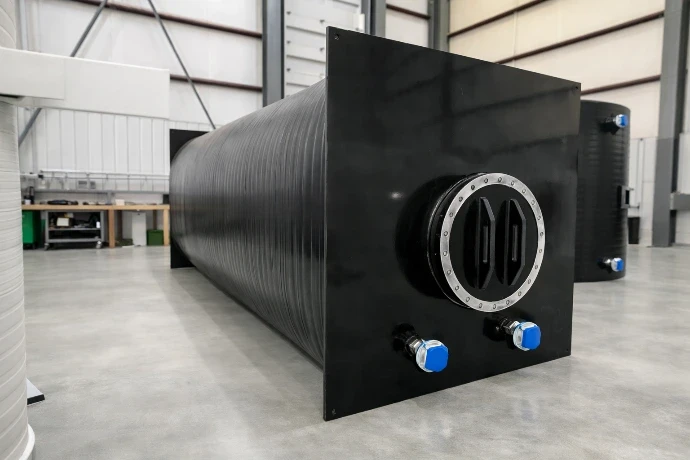

| Patented Extrusion-Wound Rectangular Tank | custom (US Patent 10150264 B2) | Storage Tank | PP or HDPE | up to 18000 gal | same as HDPE/PP above |
| MagnaPlast Sanitary Sewer Manhole | custom | Manhole/Infrastructure | Monolithic extrusion-wound HDPE | 6/8/12 ft heights; 24/27/30in riser dia; up to 9in vertical adj | 100-year design service life; H-20/HS-25 traffic rated |
| Extrusion-Wound PP/HDPE Pipe | custom | Pipe | HDPE or PP | inside dia 24in-13ft; wall 0.5-3.5in | HDPE up to 120F; PP up to 180-200F |
| Metal Mesh Reinforced Pipe (Hybrid Polymer Pipe and Tile) | custom (US Patent 10766209) | Pipe | Polymer matrix + embedded metal mesh/carbon fiber/fiberglass | same dia/wall as standard pipe; up to 2x strength of standard plastic pipe | same as standard pipe |
| PP/HDPE Ductwork | custom | Ductwork | HDPE or PP | dia 2-13 ft; wall 0.25-3in | HDPE up to 120F; PP up to 180F chemical / 200F air |
| Tank Accessories | Manways & Access Ports | Manway/Lid | n/a | top (bolted/threaded, multiple diameters) or side manways, SS bug-screen vents | n/a |
| Tank Accessories | Fittings and Nozzles | Fitting | PP/HDPE nozzles, PP-dipped backing rings, 304SS/316SS/Hastelloy C hardware | welded ANSI flanges 150-lb, 3-30in; threaded NPT or bolted | n/a |
| Tank Accessories | Instrumentation | Instrumentation | n/a | external reverse float level indicators, temp ports, leak detection panels for double-wall interstitial monitoring | n/a |
| Tank Accessories | Mixing, Reactor, and Process Integration | Accessory | n/a | mixer mounts (torque/load engineered, no external ground support), agitator support structures, immersion heater mounts | n/a |
| Tank Accessories | Safety and Access Equipment | Accessory | n/a | ladders w/ walk-through safety gate, handrails, load-cell inspection rings, wind/seismic tie-down systems, OSHA-aligned | n/a |
| Tank Accessories | Secondary Containment | Containment Basin | n/a | integrated containment basins, external containment, tank-within-a-tank options, EPA/local compliance | n/a |
| Tank Accessories | Internal Components | Accessory | n/a | down-pipe supports, internal structural grids, aeration/mixing grids, baffles/weirs/mounting platforms | n/a |
Sourced from Houston PolyTank's own catalog documentation.
Related Manufacturers & Products
Frequently Asked Questions
What design standard do Houston PolyTank tanks follow?
DVS 2205, a German thermoplastic vessel design standard, engineered for creep control, thermal cycling, and 20+ year service life.
What is the difference between extrusion-wound and roto-molded tanks?
Extrusion-wound tanks have a monolithic, solid wall structure with a ductile (detectable) failure mode. Roto-molded tanks have a stressed skin with residual tension and fail by sudden stress cracking, typically lasting only 3–7 years vs. 20+ for extrusion-wound.
Is MagnaPlast a separate manufacturer from Houston PolyTank?
No — MagnaPlast is Houston PolyTank's own trademarked manhole and access product line, not an independently-branded company.
“I don't sell tanks. I engineer sleep.” — James Riggins
Ready to buy or need a fast answer? Call, text, or email James directly — (559) 395-5500 · [email protected].
Houston PolyTank models in the LibertyCES catalog
14 models across 8 product lines. For most models that state them (the middle 80%): connection sizes 0.25–30 in. Extremes are in the table.
| Model / line | Type | Size / capacity / flow | Pressure | Temperature | Wetted material | Source |
|---|---|---|---|---|---|---|
| Vertical Cylindrical Tank custom | Storage Tank | 50–30,000 gal (189–113,562 L) | HDPE up to 120F; PP up to 180F chemical / 200F water-air | PP or HDPE | Manufacturer documentation on file | |
| Horizontal Cylindrical Tank custom | Storage Tank | same range as vertical; engineered supports required | same as HDPE/PP above | PP or HDPE | Manufacturer documentation on file | |
| Patented Extrusion-Wound Rectangular Tank custom (US Patent 10150264 B2) | Storage Tank | 18,000 gal (68,137 L) | same as HDPE/PP above | PP or HDPE | Manufacturer documentation on file | |
| MagnaPlast Sanitary Sewer Manhole custom | Manhole/Infrastructure | 6/8/12 ft heights; 24/27/30in riser dia; up to 9in vertical adj | 100-year design service life; H-20/HS-25 traffic rated | Monolithic extrusion-wound HDPE | Manufacturer documentation on file | |
| Extrusion-Wound PP/HDPE Pipe custom | Pipe | inside dia 24in-13ft; wall 0.5-3.5in | 180–200 °F (82–93 °C) | HDPE or PP | Manufacturer documentation on file | |
| Metal Mesh Reinforced Pipe (Hybrid Polymer Pipe and Tile) custom (US Patent 10766209) | Pipe | same dia/wall as standard pipe; up to 2x strength of standard plastic pipe | same as standard pipe | Polymer matrix + embedded metal mesh/carbon fiber/fiberglass | Manufacturer documentation on file | |
| PP/HDPE Ductwork custom | Ductwork | dia 2-13 ft; wall 0.25-3in | HDPE up to 120F; PP up to 180F chemical / 200F air | HDPE or PP | Manufacturer documentation on file | |
| Tank Accessories Manways & Access Ports | Manway/Lid | top (bolted/threaded, multiple diameters) or side manways, SS bug-screen vents | n/a | Houston PolyTank — Website (Applications, Industries, Accessories) | ||
| Tank Accessories Fittings and Nozzles | Fitting | welded ANSI flanges 150-lb, 3-30in; threaded NPT or bolted | PP/HDPE nozzles, PP-dipped backing rings, 304SS/316SS/Hastelloy C hardware | Houston PolyTank — Website (Applications, Industries, Accessories) | ||
| Tank Accessories Instrumentation | Instrumentation | external reverse float level indicators, temp ports, leak detection panels for double-wall interstitial monitoring | n/a | Houston PolyTank — Website (Applications, Industries, Accessories) | ||
| Tank Accessories Mixing, Reactor, and Process Integration | Accessory | mixer mounts (torque/load engineered, no external ground support), agitator support structures, immersion heater mounts | n/a | Houston PolyTank — Website (Applications, Industries, Accessories) | ||
| Tank Accessories Safety and Access Equipment | Accessory | ladders w/ walk-through safety gate, handrails, load-cell inspection rings, wind/seismic tie-down systems, OSHA-aligned | n/a | Houston PolyTank — Website (Applications, Industries, Accessories) | ||
| Tank Accessories Secondary Containment | Containment Basin | integrated containment basins, external containment, tank-within-a-tank options, EPA/local compliance | n/a | Houston PolyTank — Website (Applications, Industries, Accessories) | ||
| Tank Accessories Internal Components | Accessory | down-pipe supports, internal structural grids, aeration/mixing grids, baffles/weirs/mounting platforms | n/a | Houston PolyTank — Website (Applications, Industries, Accessories) |
This table is part of the equipment catalog dataset (CSV and JSON).
Send James your spec
Fluid, concentration, temperature, flow or volume, and where it goes. James replies with a real answer, not a catalog page.
Reviewed by James Riggins, 30+ years specifying water and chemical process equipment · Updated
