JCS Tool & Mfg
PTFE, PP, and PVDF lined pipe fittings up through 12 inches, 150# and 300# — molded liners, full vacuum service -20°F to +450°F.
JCS Tool & Mfg makes PTFE, PP, and PVDF lined pipe fittings up through 12 inches in 150# and 300# classes, including elbows, tees, reducers, crosses, and laterals. Liners are molded to fit the fitting body and rated for full vacuum service from -20F to 450F. PP and PVDF availability depends on size and shape, so confirm before quoting.
What LibertyCES specifies from JCS Tool & Mfg
Elbow liners molded to fit the fitting body — avoiding both bend-induced stress and the housing-to-liner gap a separately-inserted liner creates.
Full vacuum service rated across -20°F to +450°F, in PTFE, PP, or PVDF (PP/PVDF availability is size- and shape-dependent).
JCS Tool & Mfg — Real Catalog Spec Data
| Product Line | Model | Category | Material | Size / Capacity | Temp Rating |
|---|---|---|---|---|---|
| PTFE Lined Fittings | Equal Tees | Fitting | PTFE liner (ASTM F1545) standard, PP or PVDF available (size/shape dependent), metal body | 1"-12", 150#/300# | -20F to 450F, full vacuum rated |
| PTFE Lined Fittings | Reducing Tees | Fitting | PTFE liner (ASTM F1545) standard, PP or PVDF available (size/shape dependent), metal body | up to 12x10, 150#/300# | -20F to 450F, full vacuum rated |
| PTFE Lined Fittings | Instrument Tees | Fitting | PTFE liner (ASTM F1545) standard, PP or PVDF available (size/shape dependent), metal body | 1x1x1/2 through 8x8x6, double-outlet to 12x2-10, wafer or lug style, 150#/300# | -20F to 450F, full vacuum rated |
| PTFE Lined Fittings | Short Stack Tees | Fitting | PTFE liner (ASTM F1545) standard, PP or PVDF available (size/shape dependent), metal body | 1/2"-12", 150#/300# | -20F to 450F, full vacuum rated |
| PTFE Lined Fittings | Short Stack Crosses | Fitting | PTFE liner (ASTM F1545) standard, PP or PVDF available (size/shape dependent), metal body | 1/2"-12", 150#/300# | -20F to 450F, full vacuum rated |
| PTFE Lined Fittings | Reducing Filler Flanges | Fitting | PTFE liner (ASTM F1545) standard, PP or PVDF available (size/shape dependent), metal body | 1/2" through 14x12,10,8,6, 150#/300#, standard/scalloped/straight bore | -20F to 450F, full vacuum rated |
| PTFE Lined Fittings | 90 Degree Elbows | Fitting | PTFE liner (ASTM F1545) standard, PP or PVDF available (size/shape dependent), metal body | 1"-12" standard, special reducing sizes, 150#/300# | -20F to 450F, full vacuum rated |
| PTFE Lined Fittings | 45 Degree Elbows | Fitting | PTFE liner (ASTM F1545) standard, PP or PVDF available (size/shape dependent), metal body | 1" through 10x8, 150#/300# | -20F to 450F, full vacuum rated |

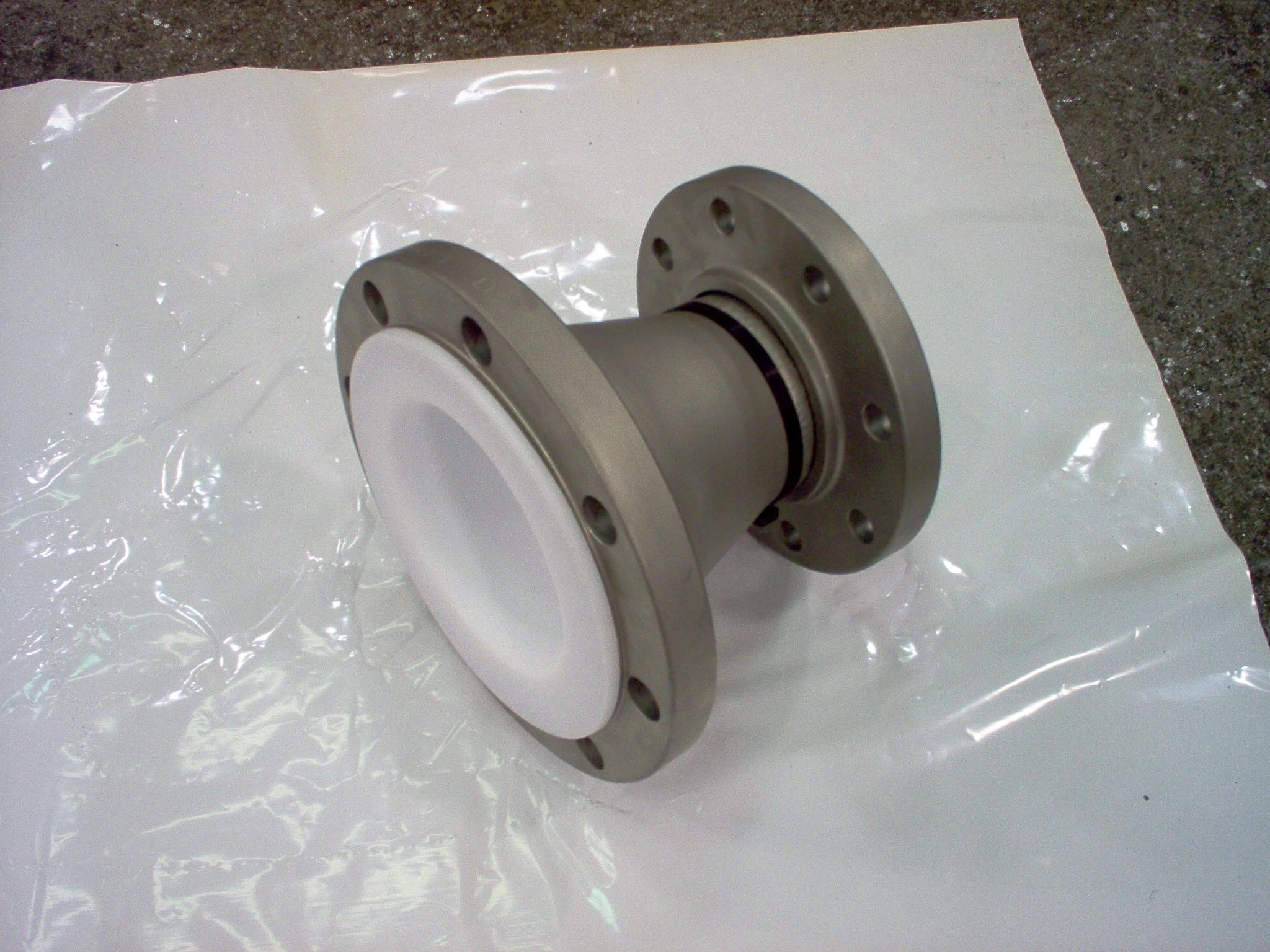

| PTFE Lined Fittings | Concentric Reducers | Fitting | PTFE liner (ASTM F1545) standard, PP or PVDF available (size/shape dependent), metal body | 1x1/2 through 12x10, 150#/300# | -20F to 450F, full vacuum rated |
| PTFE Lined Fittings | Eccentric Reducers | Fitting | PTFE liner (ASTM F1545) standard, PP or PVDF available (size/shape dependent), metal body | 1x1/2 through 12x10, 150#/300# | -20F to 450F, full vacuum rated |
| PTFE Lined Fittings | Armored & Ring Spacers | Fitting | PTFE liner (ASTM F1545) standard, PP or PVDF available (size/shape dependent), metal body | Lined 3/4"-3-1/2" long, Armored 1/2"-3" long, Solid 1/8"-3" long, 150#/300# | -20F to 450F, full vacuum rated |
| PTFE Lined Fittings | Crosses | Fitting | PTFE liner (ASTM F1545) standard, PP or PVDF available (size/shape dependent), metal body | 1" through 12x10, 150#/300# | -20F to 450F, full vacuum rated |
| PTFE Lined Fittings | Laterals | Fitting | PTFE liner (ASTM F1545) standard, PP or PVDF available (size/shape dependent), metal body | 1" through 12x8, 150#/300# | -20F to 450F, full vacuum rated |
| PTFE Lined Fittings | Distance Spools | Fitting | PTFE liner (ASTM F1545) standard, PP or PVDF available (size/shape dependent), metal body | 1"-8", 150#/300# | -20F to 450F, full vacuum rated |
| PTFE Lined Fittings | Reducing Run Tees | Fitting | PTFE liner (ASTM F1545) standard, PP or PVDF available (size/shape dependent), metal body | per shape chart, 150#/300# | -20F to 450F, full vacuum rated |
Sourced from JCS Tool & Mfg's own catalog documentation.
Related Manufacturers & Products
Frequently Asked Questions
What is the operating range for JCS Tool lined fittings?
-20°F to +450°F, with the liner rated for full vacuum service across the entire range — a real, explicit vacuum-service claim from the vendor's own current product page.
What makes a molded liner better than a separately-inserted liner?
A molded liner is formed to fit the fitting body directly, avoiding the bend-induced stress of forcing a straight liner to curve and eliminating the housing-to-liner gap a separately-molded, inserted liner creates — that gap reduces both mechanical strength and vacuum rating.
Are JCS Tool lined fittings available in materials other than PTFE?
Yes — PP and PVDF are also offered, but availability is size- and shape-dependent per JCS's own sizing chart, so confirm the specific fitting and size before quoting PP or PVDF instead of PTFE.
Get the right lined fitting for your chemistry and pressure class
Ready to buy or need a fast answer? Call, text, or email James directly — (559) 395-5500 · [email protected].
JCS Tool & Mfg models in the LibertyCES catalog
16 models across 1 product line. For most models that state them (the middle 80%): connection sizes 0.5–12 in; temperature to 450°F (232°C). Extremes are in the table.
| Model / line | Type | Size / capacity / flow | Pressure | Temperature | Wetted material | Source |
|---|---|---|---|---|---|---|
| PTFE Lined Fittings Equal Tees | Fitting | 1"-12", 150#/300# | -20–450 °F (-29–232 °C) | PTFE liner (ASTM F1545) standard, PP or PVDF available (size/shape dependent), metal body | JCS Tool & Mfg — PTFE/PP/PVDF Lined Pipe Fittings | |
| PTFE Lined Fittings Reducing Tees | Fitting | up to 12x10, 150#/300# | -20–450 °F (-29–232 °C) | PTFE liner (ASTM F1545) standard, PP or PVDF available (size/shape dependent), metal body | JCS Tool & Mfg — PTFE/PP/PVDF Lined Pipe Fittings | |
| PTFE Lined Fittings Instrument Tees | Fitting | 1x1x1/2 through 8x8x6, double-outlet to 12x2-10, wafer or lug style, 150#/300# | -20–450 °F (-29–232 °C) | PTFE liner (ASTM F1545) standard, PP or PVDF available (size/shape dependent), metal body | JCS Tool & Mfg — PTFE/PP/PVDF Lined Pipe Fittings | |
| PTFE Lined Fittings Short Stack Tees | Fitting | 1/2"-12", 150#/300# | -20–450 °F (-29–232 °C) | PTFE liner (ASTM F1545) standard, PP or PVDF available (size/shape dependent), metal body | JCS Tool & Mfg — PTFE/PP/PVDF Lined Pipe Fittings | |
| PTFE Lined Fittings Short Stack Crosses | Fitting | 1/2"-12", 150#/300# | -20–450 °F (-29–232 °C) | PTFE liner (ASTM F1545) standard, PP or PVDF available (size/shape dependent), metal body | JCS Tool & Mfg — PTFE/PP/PVDF Lined Pipe Fittings | |
| PTFE Lined Fittings Reducing Filler Flanges | Fitting | 1/2" through 14x12,10,8,6, 150#/300#, standard/scalloped/straight bore | -20–450 °F (-29–232 °C) | PTFE liner (ASTM F1545) standard, PP or PVDF available (size/shape dependent), metal body | JCS Tool & Mfg — PTFE/PP/PVDF Lined Pipe Fittings | |
| PTFE Lined Fittings 90 Degree Elbows | Fitting | 1"-12" standard, special reducing sizes, 150#/300# | -20–450 °F (-29–232 °C) | PTFE liner (ASTM F1545) standard, PP or PVDF available (size/shape dependent), metal body | JCS Tool & Mfg — PTFE/PP/PVDF Lined Pipe Fittings | |
| PTFE Lined Fittings 45 Degree Elbows | Fitting | 1" through 10x8, 150#/300# | -20–450 °F (-29–232 °C) | PTFE liner (ASTM F1545) standard, PP or PVDF available (size/shape dependent), metal body | JCS Tool & Mfg — PTFE/PP/PVDF Lined Pipe Fittings | |
| PTFE Lined Fittings Concentric Reducers | Fitting | 1x1/2 through 12x10, 150#/300# | -20–450 °F (-29–232 °C) | PTFE liner (ASTM F1545) standard, PP or PVDF available (size/shape dependent), metal body | JCS Tool & Mfg — PTFE/PP/PVDF Lined Pipe Fittings | |
| PTFE Lined Fittings Eccentric Reducers | Fitting | 1x1/2 through 12x10, 150#/300# | -20–450 °F (-29–232 °C) | PTFE liner (ASTM F1545) standard, PP or PVDF available (size/shape dependent), metal body | JCS Tool & Mfg — PTFE/PP/PVDF Lined Pipe Fittings | |
| PTFE Lined Fittings Armored & Ring Spacers | Fitting | Lined 3/4"-3-1/2" long, Armored 1/2"-3" long, Solid 1/8"-3" long, 150#/300# | -20–450 °F (-29–232 °C) | PTFE liner (ASTM F1545) standard, PP or PVDF available (size/shape dependent), metal body | JCS Tool & Mfg — PTFE/PP/PVDF Lined Pipe Fittings | |
| PTFE Lined Fittings Crosses | Fitting | 1" through 12x10, 150#/300# | -20–450 °F (-29–232 °C) | PTFE liner (ASTM F1545) standard, PP or PVDF available (size/shape dependent), metal body | JCS Tool & Mfg — PTFE/PP/PVDF Lined Pipe Fittings | |
| PTFE Lined Fittings Laterals | Fitting | 1" through 12x8, 150#/300# | -20–450 °F (-29–232 °C) | PTFE liner (ASTM F1545) standard, PP or PVDF available (size/shape dependent), metal body | JCS Tool & Mfg — PTFE/PP/PVDF Lined Pipe Fittings | |
| PTFE Lined Fittings Distance Spools | Fitting | 1"-8", 150#/300# | -20–450 °F (-29–232 °C) | PTFE liner (ASTM F1545) standard, PP or PVDF available (size/shape dependent), metal body | JCS Tool & Mfg — PTFE/PP/PVDF Lined Pipe Fittings | |
| PTFE Lined Fittings Reducing Run Tees | Fitting | per shape chart, 150#/300# | -20–450 °F (-29–232 °C) | PTFE liner (ASTM F1545) standard, PP or PVDF available (size/shape dependent), metal body | JCS Tool & Mfg — PTFE/PP/PVDF Lined Pipe Fittings | |
| PTFE Lined Fittings Pipe Spools | Fitting | per shape chart, 150#/300# | -20–450 °F (-29–232 °C) | PTFE liner (ASTM F1545) standard, PP or PVDF available (size/shape dependent), metal body | JCS Tool & Mfg — PTFE/PP/PVDF Lined Pipe Fittings |
