Why Chemical Pumps Fail:
Material Incompatibility,
Mag-Drive Decoupling,
and How to Spec for
Zero Repeat Failures
Most industrial chemical pump failures trace back to one cause — a specification made without verifying material compatibility against the actual chemistry, concentration, and temperature. This guide breaks down the failure mechanisms engineers encounter most often and the engineering decisions that eliminate them.
The Pump Was Never the Problem. The Spec Was.
Industrial facilities replace the same pump three, four, five times before anyone asks why it keeps failing.
In sodium hypochlorite dosing systems, hydrochloric acid transfer lines, and sulfuric acid feed systems, the failure pattern is almost always the same: swollen elastomers, degraded impellers, loss of seal integrity, and unplanned downtime during compliance-critical windows.
The pump brand is rarely the cause. The material selection is.
Engineering Reality: A pump with EPDM O-rings installed in 12 percent sodium hypochlorite service will fail. Every time. EPDM swells in oxidizing chemical environments. This is documented in every chemical resistance guide published by every major manufacturer. But specifying teams working under time pressure miss it constantly.
Engineering certainty starts with verifying wetted materials — housing, impeller, O-rings, shaft, bushing — against the specific chemical at the specific concentration and temperature before the order is placed. Not after the third failure.
Polypropylene vs PVDF: The Decision That Determines Service Life
Polypropylene and PVDF are the two primary construction materials for sealless plastic magnetic drive pumps in industrial chemical service. They are not interchangeable. Selecting the wrong material does not produce marginal performance — it produces pump failure.
Polypropylene (PP)
- Handles dilute and moderately concentrated inorganic acids including hydrochloric acid and phosphoric acid
- Handles sodium hydroxide and potassium hydroxide in most industrial concentrations
- Limited resistance to strong oxidizing acids and concentrated nitric acid
- Not appropriate for sodium hypochlorite service, chlorine service, or halogenated solvent contact
- Lowest material cost among industrial polymer pump materials
PVDF — Polyvinylidene Fluoride
- Handles strong oxidizing acids including concentrated sulfuric acid above 70%
- Handles sodium hypochlorite at 12% concentration and above at rated temperatures
- Handles chlorine, bleach, and other aggressive oxidizing chemicals
- Excellent solvent resistance across most industrial solvents
- UV-stable for outdoor installation
- Higher material cost — justified by extended service life in aggressive service
O-Ring Material Selection — The Hidden Failure Point
O-ring material failure is responsible for as many pump failures as housing material errors. The most common incompatibility in water treatment and chemical dosing applications is EPDM seats in sodium hypochlorite service. EPDM swells in NaOCl. The correct specification is FKM (Viton) elastomers for sodium hypochlorite, chlorine, and most acid service applications. For the most aggressive chemical service including fuming acids and fluorinated compounds, FEP-encapsulated FKM provides fluoropolymer outer surface protection with FKM mechanical properties.
Critical Note: Chemical compatibility is concentration and temperature dependent. A material compatible with 10% sulfuric acid may not be compatible with 93% sulfuric acid. Always verify compatibility at the actual concentration and temperature the pump will see in service.
Material Compatibility — Sodium Hypochlorite Service
Illustrative reference. Verify against manufacturer data for your specific concentration, temperature, and installation conditions.
| Material | Up to 10% | 10–50% | 50–75% | Above 75% |
|---|---|---|---|---|
| PVDF | Excellent | Excellent | Excellent | Excellent |
| Polypropylene (PP) | Excellent | Good | Limited — check temp | Not Recommended |
| PVC Schedule 80 | Good | Good | Not Recommended | Not Recommended |
| 316 Stainless Steel | Not Recommended | Not Recommended | Not Recommended | Not Recommended |
| HDPE | Excellent | Excellent | Good | Limited |
| EPDM Elastomer | Not Recommended | Not Recommended | Not Recommended | Not Recommended |
| FKM (Viton) Elastomer | Excellent | Excellent | Good | Verify at temp |
Ratings are concentration and temperature dependent. Verify against manufacturer chemical resistance data and ASTM testing for your specific installation conditions before specifying.
Need a compatibility review for your current application? James Riggins will verify your wetted materials against your actual chemistry before you order.
Request a Compatibility Review34 Months of Uninterrupted Runtime After One Spec Correction

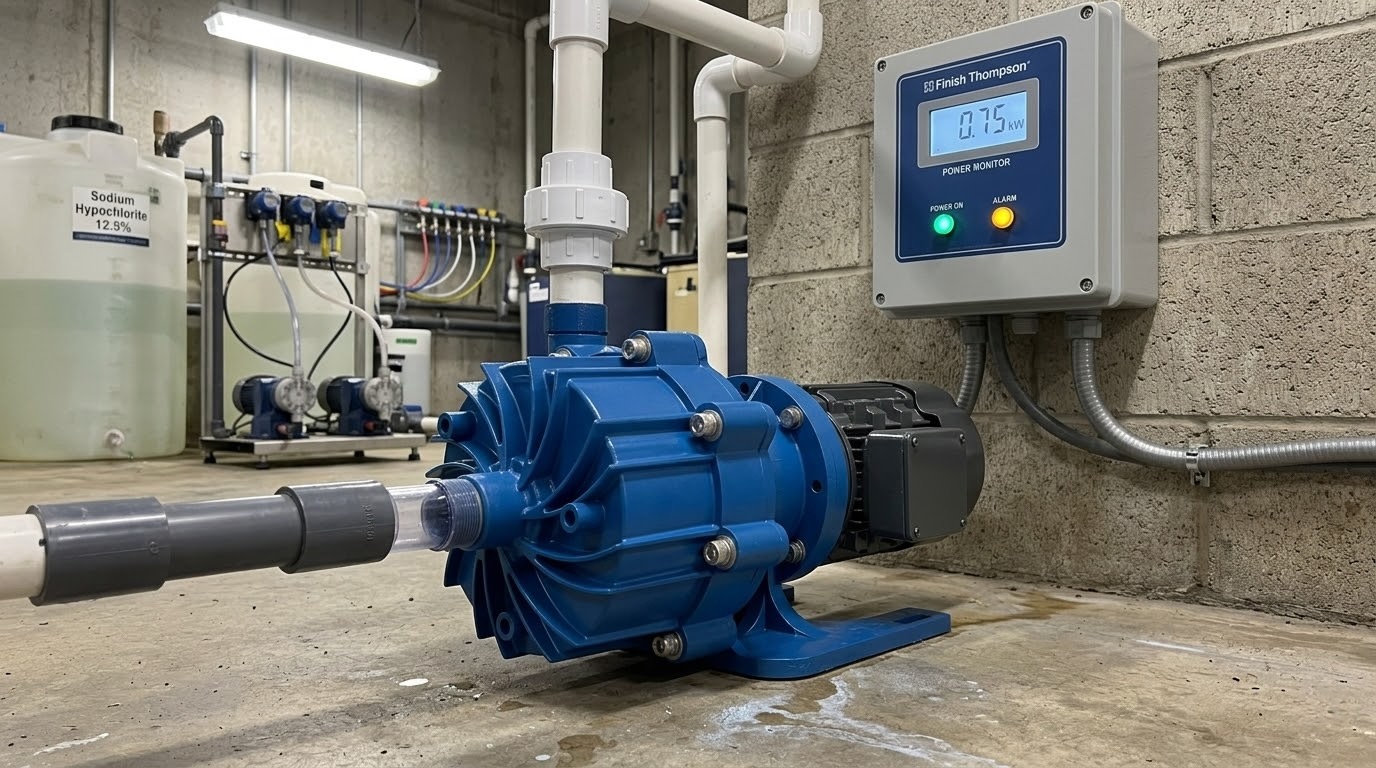

A municipal water treatment facility operating at 3.2 MGD was replacing its sodium hypochlorite dosing pump every six to eight weeks — three replacement cycles per year.
System Conditions at Time of Failure
| Chemical | Sodium hypochlorite, 12% concentration |
| Temperature | 100°F ambient |
| Duty Cycle | Continuous |
| Original Construction | Polypropylene housing with EPDM elastomers |
| Root Cause | EPDM elastomers specified without NaOCl compatibility verification |
| Engineering Solution | PVDF construction with FKM elastomers, verified before order |
The pump was not defective. The specification was incorrect. The fix cost less than one emergency replacement cycle. The difference was a verified specification.
View Full Case Studies →
Mag-Drive Decoupling — The Most Misdiagnosed Failure in Chemical Transfer
What Decoupling Actually Is
Sealless magnetic drive pumps transmit motor torque across a non-metallic containment barrier using a magnetic coupling between an outer drive assembly connected to the motor shaft and an inner magnet assembly integral with the impeller. There is no physical shaft connection penetrating the rear casing. This is the engineering mechanism that makes mag-drive pumps leak-free.
Decoupling occurs when the torque required to rotate the impeller against the process fluid exceeds the maximum transmissible torque — called pull-out torque — of the magnetic coupling. When this happens, the outer drive continues spinning at motor speed. The inner magnet and impeller slow, stall, or stop rotating. The pump ceases to transfer fluid while the motor continues to run.
Common misdiagnosis: From the outside, the failure looks like a pump that is running but producing no flow. This is frequently misdiagnosed as a failed motor, a blocked line, or a defective pump. The actual mechanism is a torque limit event in the coupling.
Causes of Decoupling in Corrosive Chemical Service
- Fluid specific gravity above specification. Every Finish Thompson DB Series and SP Series pump is rated for specific gravities over 1.8, but the motor horsepower must be confirmed against the actual specific gravity of the fluid. A pump specified for SG 1.2 operating at SG 1.6 due to concentration change or chemical batch variation will see higher torque loads than the coupling was sized for. Decoupling follows.
- Dead-head operation against a closed discharge valve. At zero flow, the impeller is working against maximum system resistance and generating maximum torque. The Finish Thompson DB Series and SP Series pumps are not designed for sustained dead-head operation. The magnetic coupling generates heat in the containment barrier under these conditions. Extended dead-head events can deform the rear casing and compromise leak-free integrity.
- Solids entrainment blocking the impeller. Particulate matter above design tolerance creates sudden torque spikes that momentarily exceed coupling pull-out torque. Even brief decoupling events with solids contact can cause bushing damage due to loss of fluid lubrication during the decoupled period.
- Rapid specific gravity transients during batch changeover. When a dense chemical batch is introduced into a system running a lighter fluid, the torque load on the impeller increases abruptly. If the transition exceeds coupling capacity, decoupling occurs at the moment of batch introduction.
How to Detect and Prevent Decoupling
The engineering solution is not diagnosing decoupling after the damage occurs. It is detecting it within seconds of onset and tripping the motor before thermal or mechanical damage results. The Finish Thompson power monitor continuously reads motor power consumption. When decoupling occurs, motor power drops sharply — the monitor detects this below-minimum power condition and trips the motor within seconds.
The power monitor provides four protection functions on a single device, covering all motor voltages up to 690 VAC at 50 or 60 Hz. A digital display provides live power readings. PLC output enables integration with plant automation and SCADA systems.
A power monitor costs a fraction of one emergency pump replacement event. On continuous-duty corrosive chemical service — water treatment, chemical manufacturing, electroplating, industrial wastewater — it is not optional protection. It is the baseline engineering response to the decoupling failure mode.
Selecting the Right Finish Thompson Pump Series for Corrosive Chemical Service
Three series cover the range of industrial corrosive chemical transfer applications. Correct series selection depends on installation geometry, required head, and flow conditions — not catalog defaults.
DB Series
Standard selection for most corrosive chemical transfer
Chemical storage-to-process transfer, sodium hypochlorite dosing, sulfuric acid transfer, plating bath circulation, fume scrubber feed
SP Series
Required when pump is installed above the fluid source
Drum and tote unloading, below-grade sump transfer, tank truck unloading, portable chemical transfer skids
MSDB Series
Multi-stage design for high discharge pressure requirements
Spray nozzle systems (60–120 psi), precision filtration with high-restriction filter elements, chemical injection into pressurized process streams
Not sure which series fits your installation? James Riggins will confirm series, construction material, and motor sizing against your actual system hydraulics.
View All Pump & Control Products →Common Chemical Pump Failure Modes and Engineering Responses
Each failure mode below presents differently at the pump. Correct diagnosis determines whether the corrective action is a part replacement, a system change, or a specification upgrade.
| Failure Mode | Root Cause | Operational Signs | Engineering Response |
|---|---|---|---|
| Cavitation | NPSHa below NPSHr at pump inlet | Rattling or crackling noise, reduced flow, impeller erosion on inspection | Increase NPSHa by reducing suction lift, enlarging suction pipe, reducing fittings count; select pump with lower NPSHr; use SP Series if lift is unavoidable |
| Dry Running | Empty supply tank, closed suction valve, suction line air lock | Zero flow output, motor running at below-normal current, bushing wear on inspection | Install power monitor with minimum power trip; add low-level switch in supply tank; specify DB Series with carbon bushing for dry-run tolerance |
| Mag-Drive Decoupling | SG or viscosity above specification, dead-head operation, solids blockage | Zero flow with motor running, heat at rear casing, motor current drop | Install power monitor for decoupling detection and motor trip; verify fluid SG against coupling rating; prevent dead-head with discharge valve interlock |
| Elastomer Swelling | EPDM or incompatible O-ring in oxidizing chemical service | Leak at pump connections, loss of flow, seal integrity failure | Replace EPDM with FKM elastomers; verify all O-ring materials against compatibility guide at actual concentration and temperature |
| Material Degradation | Polypropylene in PVDF-required chemical service | Progressive flow loss, visible discoloration or distortion of wetted components on inspection | Upgrade to PVDF construction; verify housing, impeller, O-rings, shaft, and bushing all meet compatibility requirements |
| Off-BEP Hydraulic Instability | Operating point outside 70–110% of best efficiency point flow | Noise, vibration, impeller erosion, accelerated bearing wear | Reselect pump to place operating point near BEP; add VFD for variable-flow applications; install minimum flow bypass if low-flow operation is required |
For a complete failure analysis of your current installation, contact LibertyCES with your system conditions. James Riggins will identify the failure mechanism and the correct specification before you order a replacement.
Eight Questions That Must Be Answered Before Any Chemical Pump Specification Is Final
Generic distributors ship pumps from catalog selections. The engineering failures that result are predictable. A correct chemical pump specification requires answers to these eight diagnostic questions before a pump model is selected.
What is the exact chemical, concentration, and any known impurities in the fluid?
What is the normal operating temperature and the maximum temperature the fluid will reach in service?
What is the specific gravity and viscosity of the fluid at operating temperature?
What flow rate is required at normal operating conditions and at maximum demand?
What is the total system head including static elevation, friction losses, and back pressure from downstream equipment?
What is the NPSHa at worst-case conditions — maximum temperature, minimum tank level, maximum flow?
What is the duty cycle — continuous, intermittent, or batch — and what is the risk of dry-run exposure?
What are the regulatory classification and secondary containment requirements for this chemical in this installation?
These eight questions generate the engineering basis for a specification. Skipping any one of them creates the conditions for the failure modes described in this guide. If you need help answering them for your system, contact LibertyCES before placing an order.
