Efficient Cone‑Bottom Water Storage Tanks

Engineered for 100% drainage and sanitation — ideal for water treatment, chemical batching, agriculture mixing, and emergency tank systems.

🔍 View Specs & Options

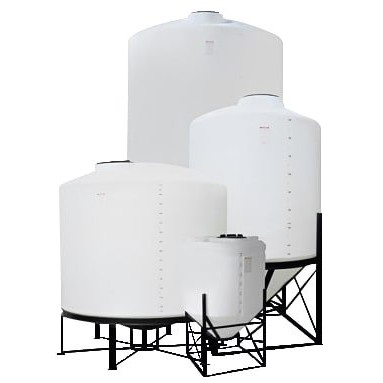

45 Degree Cone Tank Norwesco Cone-Bottom Tank DenHartog Cone Tank Collection

Cone‑Bottom Tank Specs at a Glance

Capacity:
15–10,500+ gallons
Cone Angles:
15°, 30°, 45°, 60°
Material:
HDPE or XLPE (rotomolded)
Certifications:
NSF/ANSI 61, FDA, SPCC
Drain:
Center or offset bulkhead
Fittings:
Bulkheads, vents, sensors, top-fill
Supports:
Steel stand or plastic skid
Accessories:
Mixers, seismic kits, gauge ports

Where Cone-Bottom Tanks Get to Work

From batch mixing to drainage and sediment separation — see how LibertyCES tanks perform across industries.

Industrial

Industrial

Process water, rinse water, RO reject, batching & dosing.

Chemical

Chemical

Neutralization, pH adjusters, polymer handling, CIP rinse.

Agriculture

Agriculture

Fertilizer mix tanks, irrigation chemicals, livestock supplements.

Food & Beverage

Food & Beverage

Sanitation tanks, ingredient prep, rinse and mixing systems.

Fire Systems

Fire Protection

Drain tanks for fire prep systems or flush recovery.

LibertyCES-Approved Cone Tank Vendors

  • Snyder Industries: Cone-bottom tanks from 15–10,500 gallons with XLPE and FDA options.
  • NTOTank / Norwesco: 30°, 45°, and 60° cone tanks. Complete accessory + fitting lineup.
  • DenHartog (Ace Roto-Mold): Molded-in cone tanks with steel stands included.
  • Poly Processing: XLPE chemical-grade cone tanks with SAFE-Tank® options for secondary containment.

Installation Requirements for Cone-Bottom Tanks

Steel Stand or Skid

Always mount cone-bottom tanks to a stand — never directly on concrete or gravel.

Flexible Fittings

Prevent stress cracks by using flex couplings between tank and plumbing.

Ventilation

Install a proper vent system to avoid vacuum collapse during drainage or fill cycles.

Anchoring

Cone tanks over 500 gal installed outdoors may need wind/seismic anchoring.

Common Questions About Cone-Bottom Tanks

  • Can I store drinking water?
    ✅ Yes — choose NSF/ANSI 61 certified models made from FDA-grade HDPE.
  • Do I need a stand?
    ✅ Yes — cone-bottom tanks must be used with a steel stand or cradle for full support.
  • What’s the best cone angle?
    🔧 45° for general use; 60° for sludge-heavy or settling applications.
  • Are these tanks outdoor rated?
    ☀️ Yes — black and green models are UV-stabilized for outdoor use.
  • Can LibertyCES install fittings?
    🔧 Absolutely — ports, sensors, gauges, and valves can be factory-installed or configured.
  • Is this safe for chemicals?
    🧪 Yes — use XLPE tanks for aggressive chemicals, and we’ll spec the correct resin for you.

Ready to Get the Right Cone Tank?

Let us help you spec the correct tank shape, resin, fittings, stand, and delivery options. LibertyCES takes care of the sizing, code compliance, and system fit.

📩 Request a Custom Quote

How Cone-Bottom Tanks Compare to Other Styles

Feature Cone-Bottom Vertical Horizontal Double-Wall
Full Drainage ✅ ❌ ❌ ✅
Mobile Use ❌ ❌ ✅ ✅ (limited)
Sediment Separation ✅ ❌ ❌ ❌
SPCC / Containment ⚠️ Optional ⚠️ Optional ⚠️ Optional ✅
Capacity Range 15–10,500 gal 15–20,000 gal 15–5,000 gal 300–6,000 gal

Installation Must-Haves for Cone-Bottom Water Tanks

  • Steel Stand or Skid
    Supports cone weight and shape – tank must not sit directly on ground.
  • Level, Solid Base
    Concrete pad or grating to prevent tilt or stress.
  • Flexible Plumbing
    Use flex fittings to prevent cracking due to expansion or vibration.
  • Venting System
    Protect against vacuum collapse during fast drain or fill cycles.
  • Anchoring / Restraints
    Required for outdoor, mobile, or seismic zone installations.
  • Drain Control Valve
    Allows precise flow management and sediment release from cone tip.

Common Questions About Cone-Bottom Tanks

  • Can I store drinking water in a cone-bottom tank?
    ✅ Yes — use NSF/ANSI 61 certified models made from FDA-grade HDPE.
  • Do I need a stand?
    ✅ Absolutely — cone-bottom tanks must be installed on an engineered steel stand.
  • Can this tank be used outdoors?
    ✅ Yes — black or green tanks are UV-stabilized for sun exposure.
  • What cone angle is best?
    🔧 45° for general use; 60° for sludge, heavy sediment, or thick liquids.
  • Can you pre-install fittings or sensors?
    ✅ Yes — LibertyCES can pre-fit all ports, valves, and controllers.
  • Can I store chemicals in it?
    ✅ Yes — use XLPE tanks for aggressive fluids (we’ll spec the right resin).

Ready to Build Your Custom Cone-Bottom Tank?

LibertyCES engineers will help you spec the right tank shape, cone angle, resin, ports, and fittings — fully compliant with NSF, SPCC, and chemical compatibility standards.

🧠 Talk to a Tank Expert

Fast lead times | Certified tanks | Custom installs
