Threaded Pipe Fittings (NPT / MIP / FIP)
LibertyCES offers a full range of NPT, MIP, and FIP threaded pipe fittings engineered for chemical transfer systems and industrial water treatment in California. NSF-certified options available for potable water tanks, pump assemblies, and hazardous containment plumbing.
Threaded Pipe Fittings – Certified for Chemical & Water Systems
Our threaded fittings are ideal for Industrial Water Treatment California, pH-neutralizing systems, chemical dosing lines, and hazardous material containment. Engineered for reliability and leak prevention under pressure.
✅ Technical Specifications
- Types Available: NPT, MIP (Male Iron Pipe), FIP (Female Iron Pipe)
- Sizes: ½", ¾", 1", 1½", 2", 3", 4" (custom sizes available)
- Materials: Schedule 80 PVC, CPVC, Polypropylene, Brass
- Pressure Rating: 150–235 PSI depending on spec
- Temperature: 140°F to 180°F rated materials
- Standard: ANSI/ASME B1.20.1 (NPT compatible)
- Sealants: PTFE tape or thread sealant required
- Uses: Tank outlet to pipe runs, inline pumps, valves, and process lines
California-Specific Use Cases
- Chemical Transfer Systems: Reliable under acidic and alkali loading
- Water Purification Systems: NSF pipe fittings for drinking water and recycling
- Tank-to-Process Connections: Standardized threads for HDPE and XLPE tanks
- Industrial Drainage & Overflow: Threaded junctions to shutoff valves
Slip / Socket Pipe Fittings
Used in chemical dosing systems, irrigation lines, and potable water infrastructure, LibertyCES socket fittings provide a solvent-weld seal that’s leak-free and California-code ready. Perfect for Industrial Water Treatment and Chemical Transfer Systems in California.
Slip / Socket Fittings – High-Integrity Piping for Industrial Systems
Designed for long-term solvent weld performance, these pipe fittings are the go-to choice for chemical treatment loops, municipal water systems, and industrial fluid routing. All products meet NSF and ASTM standards for California-based operations.
Technical Specifications
- Types Available: Couplings, 90° Elbows, 45° Elbows, Tees, Bushings
- Sizes: ½" to 6"+ (Schedule 40 & 80)
- Materials: PVC, CPVC (chemical-resistant)
- Connection Method: Solvent weld (PVC/CPVC cement)
- Pressure Rating: 150–235 PSI depending on wall schedule
- Temperature Rating: PVC up to 140°F, CPVC up to 200°F
- Codes: ASTM D2466 (Sch 40), ASTM D1785 (Sch 80)
- Certifications: NSF/ANSI for potable use
Typical Applications
- Industrial Water Treatment Systems – California compliant
- Chemical Transfer & Injection Systems
- Chlorine Contact Loops for Municipal Plants
- Clean-In-Place (CIP) Tank Networks
- Residential and Agricultural Irrigation Lines

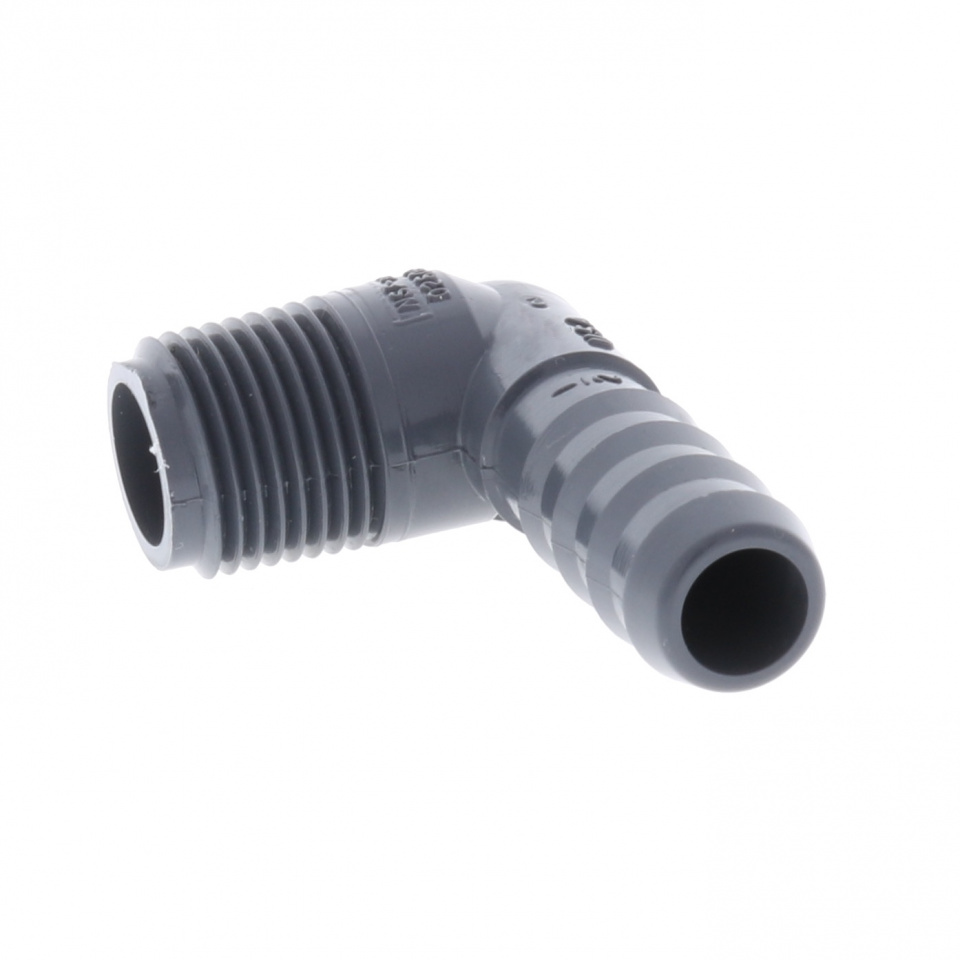

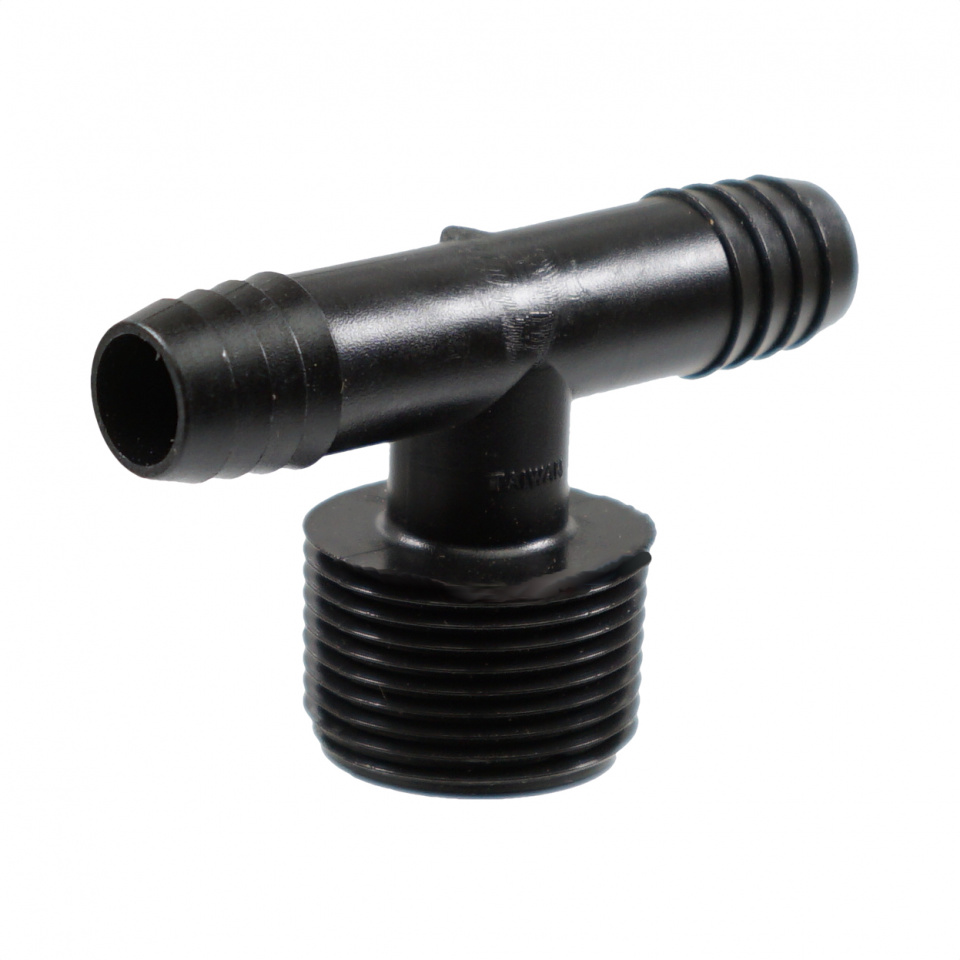

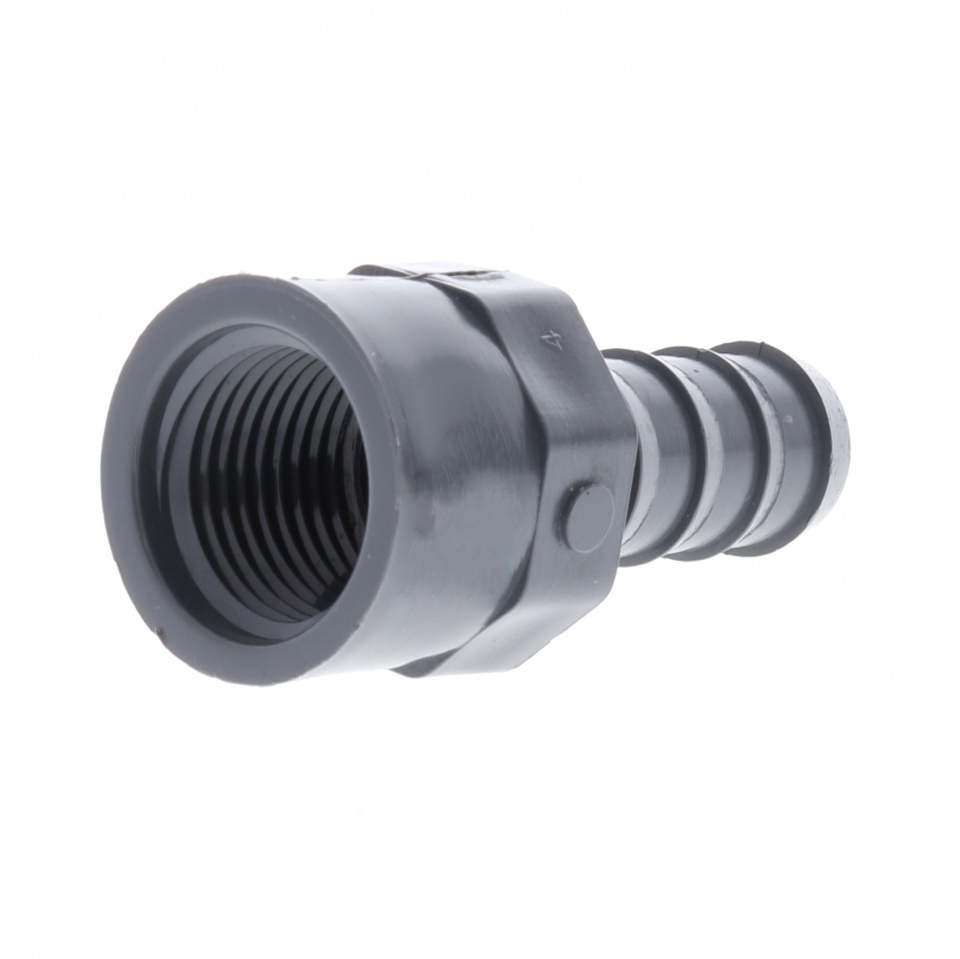

Barbed Hose Fittings
LibertyCES barbed fittings are used in ag sprayers, chemical injection lines, and mobile tank hose setups throughout California. Built for chemical compatibility and flexible pipe integration in Industrial Water Treatment and Chemical Transfer Systems.
Barbed Hose Fittings – Flexible, Secure Connections
Perfect for mobile systems, irrigation lines, and tank fill ports, barbed fittings deliver chemical-safe hose connection without threading. Ideal for California-based industrial water systems.
Technical Specifications
- Types Available: MPT x Barb, FPT x Barb, Straight, Elbow, Tee Barbs
- Sizes: ¼" to 2" barb diameters
- Materials: Nylon, Polypropylene, PVC, Brass
- Connection: Friction-fit barb with hose clamp or crimp
- Pressure Rating: Up to 150 PSI (varies by hose/clamp)
- Temperature Rating: 120°F (Nylon) to 180°F (Poly or Brass)
- Seal: No tape required – compression clamp seal
- Certifications: NSF-compliant versions available
Typical Applications
- Ag sprayers and nurse tanks
- Mobile chemical transfer lines
- Pickup truck tank plumbing
- Flexible irrigation and fill connections
- Industrial pump inlet/outlet hoses

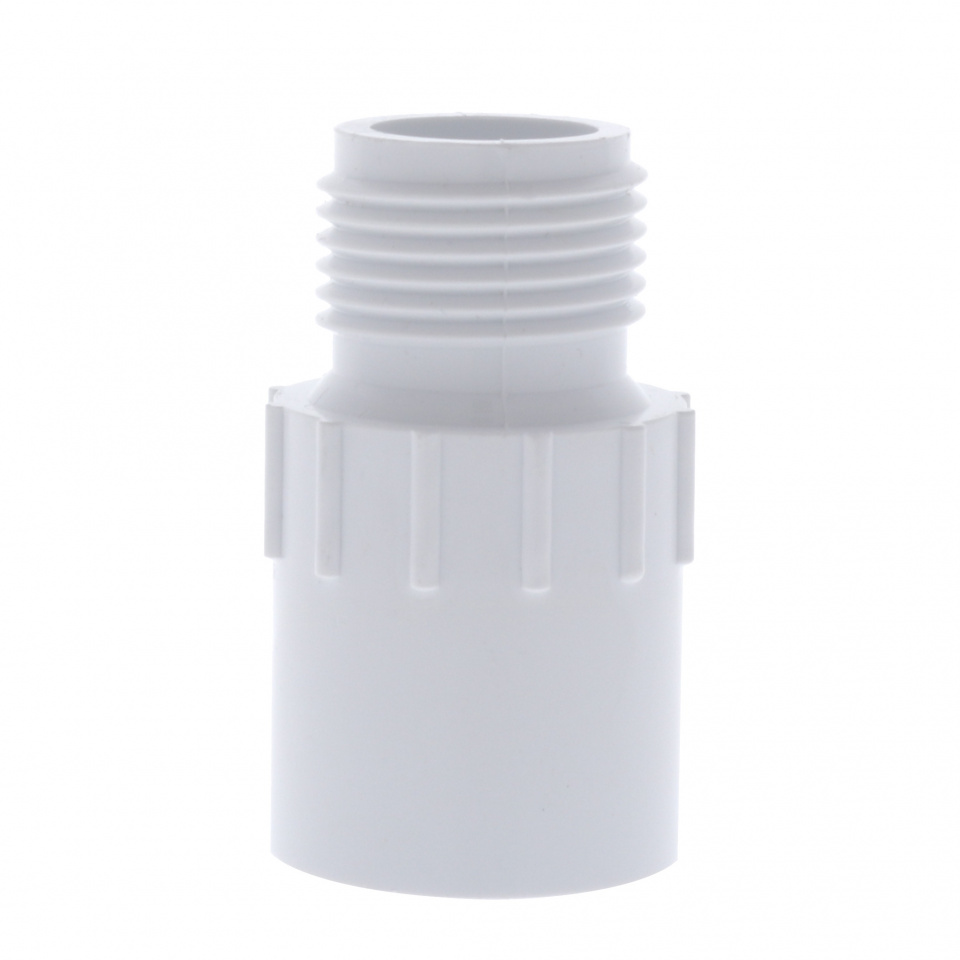

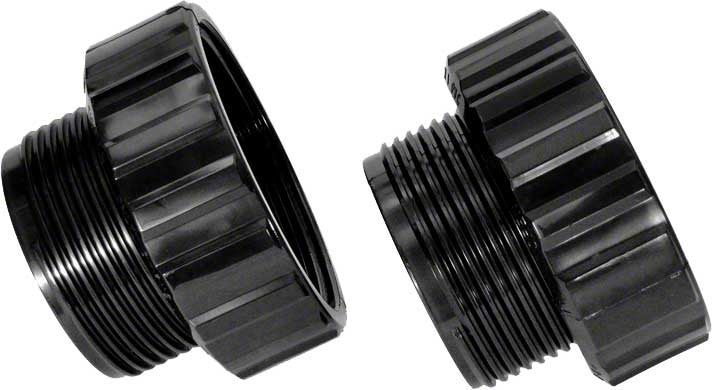

Adapters & Reducers
Transition between pipe types, sizes, and tank ports with high-strength adapters and reducers from LibertyCES. Built for Industrial Water Treatment and Chemical Transfer Systems in California’s regulatory environment.
Adapters & Reducers – Flexible Conversion for Industrial Plumbing
From tank port reductions to pipe-to-hose transitions, these high-strength adapters and reducers are essential in chemical dosing systems, irrigation assemblies, and municipal water routing. Every piece is built for California industrial and potable water compliance.
Technical Specifications
- Types Available: Male-to-Female, Female-to-Male, Thread-to-Slip, Thread-to-Barb, Size Reducers
- Size Range: ¾" to 4" (most common sizes)
- Examples: 3" to 2", 2" to 1", etc.
- Materials: Schedule 80 PVC, CPVC, PolyPro, Brass
- Connection Methods: Threaded, slip/solvent weld, or hybrid connections
- Pressure Rating: 150–235 PSI (varies by diameter and resin)
- Temperature Rating: 140°F (PVC/Poly) to 200°F (CPVC/Brass)
- Certifications: NSF-compliant for potable use, industrial-rated options available
- Notes: Often required to match tank ports to plumbing diameter
Common Use Cases
- Tank outlet conversion to smaller pipe diameter
- Transition between flexible hose and rigid PVC or CPVC pipe
- Thread-to-barb fittings for injection pumps
- Reducing 3" tank discharge to 2" PVC for pump hookups
- Adapting slip x threaded connections for chemical handling
Unions & Quick Disconnects
Built for maintenance access and inline servicing, LibertyCES unions and quick disconnects offer tool-free disassembly and leak-proof chemical seals for California chemical plants, dosing skids, and Industrial Water Treatment facilities.
Unions & Quick Disconnects – Tool-Free Service for Pipe Networks
Ensure fast disconnection for pumps, inline meters, and CIP lines with our high-performance fittings. These units are critical for Chemical Transfer Systems and Industrial Water Treatment in California and beyond.
Technical Specifications
- Types: Slip x Slip, Thread x Thread, Thread x Slip, Quick Disconnect
- Size Range: ½" to 3" (up to 4" available in CPVC/Stainless)
- Materials: PVC, CPVC, PolyPro, Stainless Steel
- Connection: Union nut (hand-tighten or wrench)
- Seal: EPDM or Viton O-rings (chemical-rated)
- Pressure Rating: 150–235 PSI
- Temperature: Up to 200°F (CPVC, Stainless)
- Certifications: NSF for potable water; chemical-rated variants available
Common Applications
- Drain lines for cleaning and access
- Pump and valve disconnection for maintenance
- Inline flow meters or sampling ports
- CIP systems (Clean-in-Place) and dosing loops
- Quick-servicing skids for industrial tanks

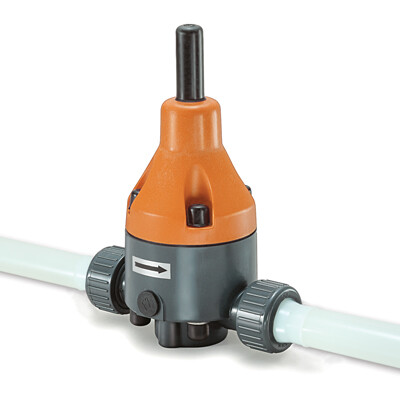

Valved Fittings & Combo Units
Designed for inline flow control and chemical safety shutoffs, LibertyCES combo valve assemblies are ready for California chemical systems and industrial water treatment applications.
Valved Fittings & Combo Units – Integrated Flow Control
From drain valves to union ball valves and check assemblies, LibertyCES offers solutions for chemical containment and Industrial Water Treatment in California. Designed to streamline installs and improve access in critical piping systems.
Technical Specifications
- Types: Union Ball Valves, Check Valves with Unions, Shutoff Assemblies, Drain Valves
- Sizes: ½" to 3" (select models to 4")
- Materials: PolyPro, PVC, CPVC, Stainless Steel
- Valve Types: Ball, Check, Gate
- Connection Methods: MIP/FIP Threaded, Slip Socket, Union Ends
- Pressure Rating: 150–235 PSI depending on material
- Temperature Rating: 140°F (PVC) to 200°F (CPVC/Stainless)
- Seals: EPDM or Viton O-rings/Gaskets
- Certifications: NSF/ANSI for potable water, chemical-safe models available
Common Applications
- Tank outlet shutoff
- Inline valve + drain combo units
- Union check valves for backpressure control
- Pressure release and fill systems
- Valve replacement access for dosing or CIP skids
Industrial Pipe Fittings for Chemical & Water Systems
LibertyCES supplies premium chemical-resistant pipe fittings designed for polyethylene tanks, SPCC chemical containment, and California water treatment systems. We offer Schedule 80 PVC, CPVC, polypropylene, and brass connectors for NSF/ANSI 61-certified fluid handling systems.
- ✔ NPT, MIP, FIP & Barbed Pipe Fittings
- ✔ NSF Certified for Potable & Chemical Applications
- ✔ Compatible with RO Skids, Tanks & Pumps
- ✔ Built for California Regulatory Environments
Industrial Pipe Fittings for California’s Water, Chemical & Waste Systems
LibertyCES provides EPA-compliant pipe fittings and chemical-resistant piping assemblies for polyethylene tanks, PVC plumbing, and fluid transfer systems across California. Our lineup includes threaded elbows, flanged unions, ball check valves, and transition couplings—precision-designed for municipal water infrastructure, hazardous chemical systems, and industrial piping skids.
View Pipe Fittings →Pipe Fitting Applications Across California Industries
From chemical skids to municipal distribution lines, LibertyCES pipe fittings support regulatory-grade performance across industrial, agricultural, and environmental sectors.
🧪 Chemical Injection Panels
Corrosion-resistant pipe couplers and PTFE-threaded elbows for sodium hypochlorite, acid, and polymer feed lines.
🌿 Agricultural Irrigation Systems
Threaded barbed hose adapters and PVC unions for fertigation skids and field injection assemblies.
🚰 Potable Water Distribution
NSF 61-certified PVC and CPVC pipe fittings for public water utility lines and onsite chlorination skids.
🏭 Industrial Water Treatment
Durable HDPE and CPVC fittings for RO skids, CIP systems, and high-pressure rinse-down tanks.
🔥 Emergency Backup & Fire Suppression
Ball check valves, quick-disconnect pipe couplings, and UV-resistant elbows for emergency water reserves.
⚖️ SPCC & EPA Compliance Installations
Double-threaded reducers and pipe unions designed for secondary containment and California EPA code compliance.
