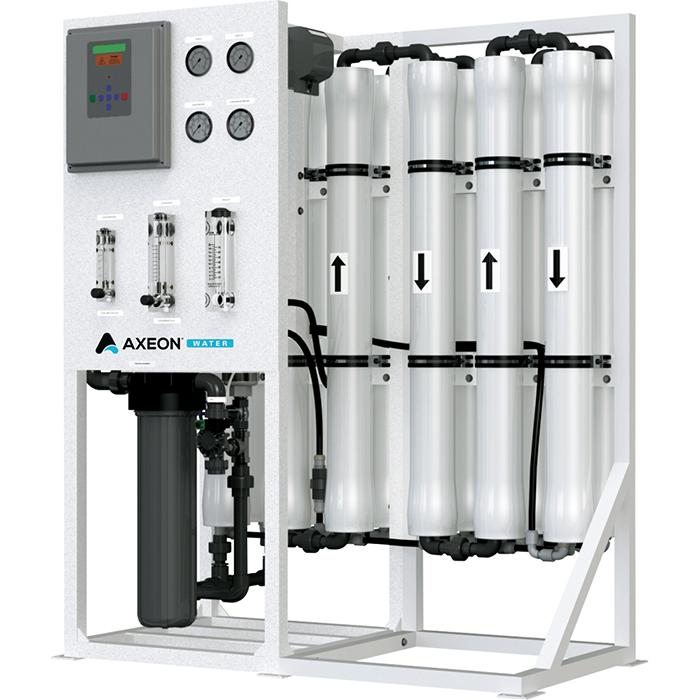

Axeon R1-Series RO System
Skid-mounted, California-optimized industrial reverse osmosis system with NSF certification and SCADA compatibility.
- ✔ 1,500–10,000 GPD Capacity
- ✔ Stainless Grundfos Pump
- ✔ PLC Logic + Auto Flush
- ✔ NSF 61 • CE • ISO 9001
Axeon R1-Series Reverse Osmosis System
Purpose-built for California industrial water purification, the Axeon R1 is ideal for spot-free rinse bays, bottling lines, and municipal reuse applications.
🔧 Tech Specs
- Flow Rate: 1,500–10,000 GPD
- Membranes: 2–4 TFC (4" x 40")
- Recovery: Up to 75%
- TDS Rejection: 98.5%
- Flush: Auto flush w/ timer
- Pump: Grundfos SS Multistage
- Enclosure: NEMA 4X
- Controller: PLC / Microprocessor
📦 Applications
- Industrial Water Treatment
- Municipal Potable Reuse
- Spot-Free Rinse Systems
- Food & Beverage Filtration
- Lab and DI Pre-Treatment
Axeon L1-Series RO System
Compact wall-mounted system for light commercial reverse osmosis in food service, labs, and under-counter installations.
- ✔ 250–1,000 GPD Flow Rate
- ✔ Space-Saving Wall Mount
- ✔ Rotary Vane or Diaphragm Pump
- ✔ NSF 58 • CE • ISO 9001
Axeon L1-Series Reverse Osmosis System
Designed for space-limited installs, the L1-Series delivers pure water for food service, labs, and under-counter applications with quiet operation and easy maintenance.
🛠️ Technical Specs
- Flow Rate: 250–1,000 GPD
- Membranes: TFC, 2.5" x 40"
- Recovery: Up to 65%
- Pressure: 100–150 PSI
- Pump: Rotary Vane or Diaphragm
- Flush: Manual (auto optional)
- Monitoring: Basic TDS, pressure gauges
💧 Pretreatment
- Carbon Block Filter
- 5-Micron Sediment
- Optional Softener/Antiscalant
🧪 Interface
- Simple LED or Digital Controller
- Optional Flow Meter & TDS Upgrade
✅ Certifications
- NSF/ANSI 58
- CE Certified
- ISO 9001:2015
📦 Applications
- Light Commercial Kitchens
- Glass Rinse & Coffee Equipment
- Medical/Dental Water Supply
- Under-Sink RO Systems

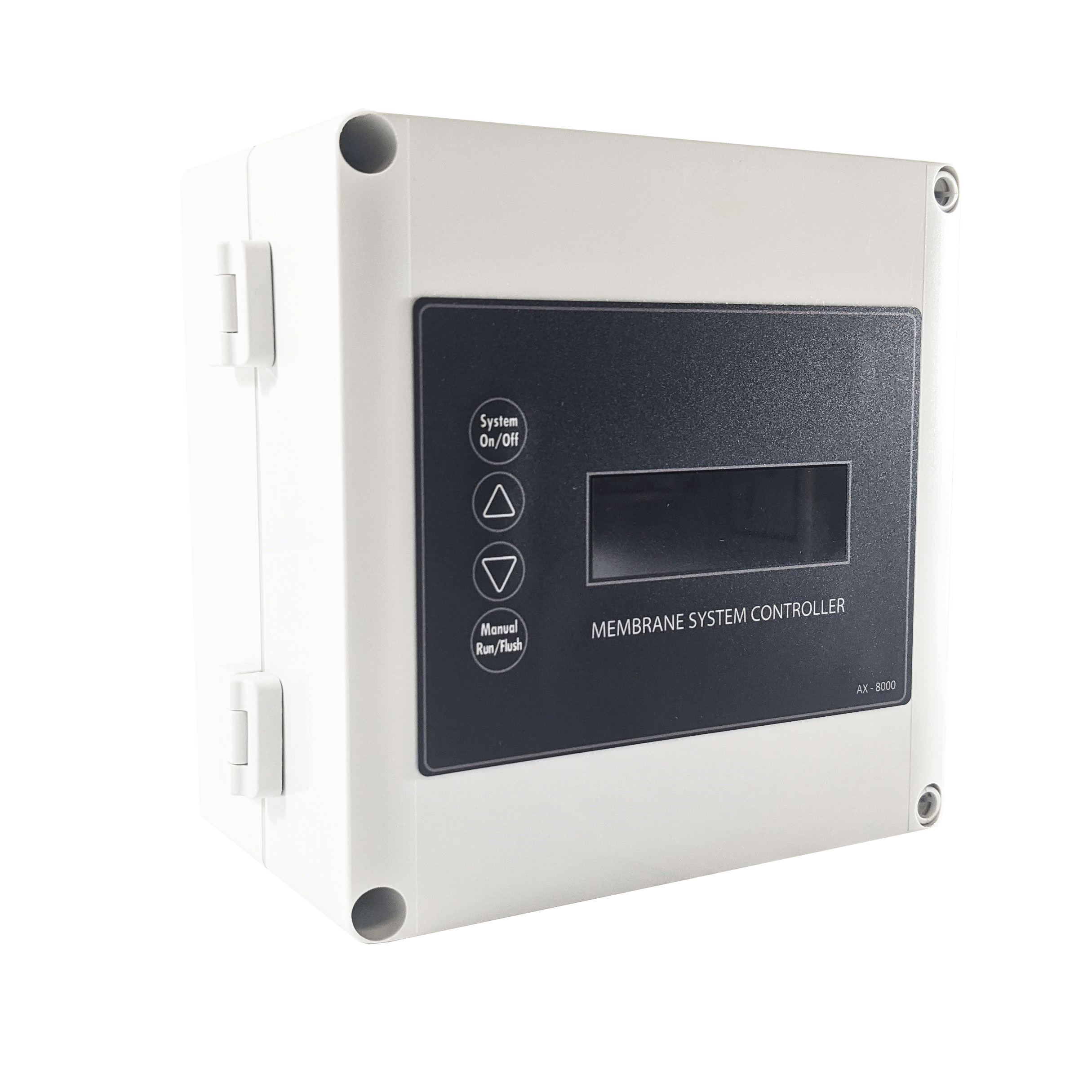

RO Control Panel
Smart controller panel for California RO automation. TDS monitoring, pump control, and SCADA-ready logic with NEMA 4X enclosure.
- ✔ LCD or Touchscreen Display
- ✔ Auto Flush • Alarm Relay
- ✔ 4–20mA, Modbus RS485 Support
- ✔ NEMA 4X • UL • CE Certified
Axeon RO Control Panel
Advanced controller for California RO automation, designed to support real-time water quality data, smart interlocks, and SCADA-ready logic for mission-critical RO operations.
🧠 Control Features
- Auto shutdown on low feed pressure
- Live TDS quality monitoring
- Flush cycle after runtime or TDS threshold
- Maintenance timers for pre-filter and membrane change
- Manual override and safety shutdown
🔌 I/O and Integration
- TDS sensor input
- High/low pressure switch inputs
- Pump relay output with interlock logic
- Flush timer and alarm relay outputs
- Signals: 4–20mA, 0–10V, Modbus RS485
- Power: 120V AC (24V DC optional)
🔐 Enclosure Specs
- Rating: NEMA 4X / IP65
- Material: Polycarbonate or Stainless Steel
- Use: Indoor and weatherproof outdoor use
✅ Certifications
- UL Listed
- CE Certified
📦 Applications
- Industrial RO Automation
- Skid-Mounted Water Systems
- Remote SCADA Monitoring
- Pump & Flush Logic Control
RO System Accessories & Parts
Build out and upgrade with NSF-certified RO accessories — membranes, housings, UV sterilizers, inline pumps, TDS meters, and more.
- ✔ High-Rejection TFC Membranes
- ✔ UV Disinfection & Flow Meters
- ✔ Inline Pumps & Flow Restrictors
- ✔ NSF 61 • OEM Certified Parts
RO System Accessories & Replacement Components
All LibertyCES RO accessories are vetted for California water treatment standards, engineered for rugged field use, and available for new builds, retrofits, and OEM deployments.

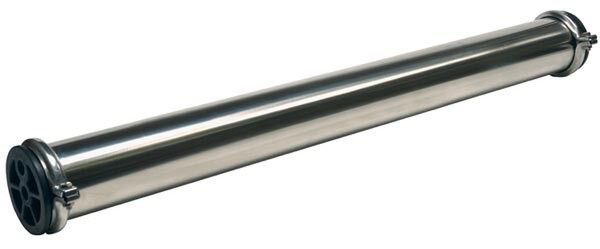

🔷 Membrane Housings
- 2.5" × 40", 4" × 40", 8" × 40" sizes
- Materials: FRP, Stainless Steel, HDPE
- 300–1000 PSI • NPT & Victaulic • High-purity liners
🔷 RO Membranes
- Types: TFC, Low-Energy, High-Rejection
- NSF/ANSI Certified • 36–12,000 GPD
- Antimicrobial, brackish, tap-grade membranes
🔷 UV Post-Treatment
- Inline UV disinfection and SS UV reactors
- 254nm wavelength • 1–40 GPM flow rates
- Quartz sleeves • Visual indicators • Fail alarms
🔷 TDS Monitors
- Digital, LED, Panel-Mount options
- 0–9999 ppm range • Single or dual probe
- Post-RO inline quality testing
🔷 Pumps & Flow Restrictors
- Booster pumps: Diaphragm, Vane, Centrifugal
- Flow Restrictors: Needle, Capillary, Orifice
- Control RO recovery rates and pressure balance
Used in field service kits, municipal water filtration retrofits, and inline quality control upgrades for industrial RO in California.
NSF-Certified Reverse Osmosis Systems Built for California’s Industrial Water Treatment
LibertyCES engineers NSF/ANSI certified reverse osmosis (RO) systems designed for municipal water reuse, industrial process treatment, spot-free rinsing, and lab-grade water purification. From compact RO skids to SCADA-ready PLC panels, we deliver California-compliant solutions trusted across high-demand environments.
Request RO System Specs →Industrial & Municipal Applications for Reverse Osmosis Systems
LibertyCES delivers reverse osmosis systems and control panels for California water treatment, laboratory filtration, municipal reuse, and high-purity commercial processes. Designed to exceed EPA, NSF, and state regulatory standards.
🏭 Industrial Process Water
Skid-mounted RO systems for cooling towers, rinse bays, and boiler makeup water across California manufacturing.
🌇 Municipal Water Reuse
NSF-certified systems for potable reuse, greywater reclamation, and SPCC-regulated applications.
🧪 Laboratory & Pharmaceutical
Compact RO systems for lab water purification, DI system pre-treatment, and high-purity chemical feeds.
🚗 Spot-Free Rinse Systems
Reverse osmosis for fleet wash bays, auto dealerships, and mobile detailing services.
☕ Food & Beverage Prep
Wall-mount RO systems for coffee shops, restaurants, and bottling facilities.
🔁 Emergency & Backup Filtration
Portable RO skids for disaster response, fire camp hydration, and hospital emergency preparedness.
